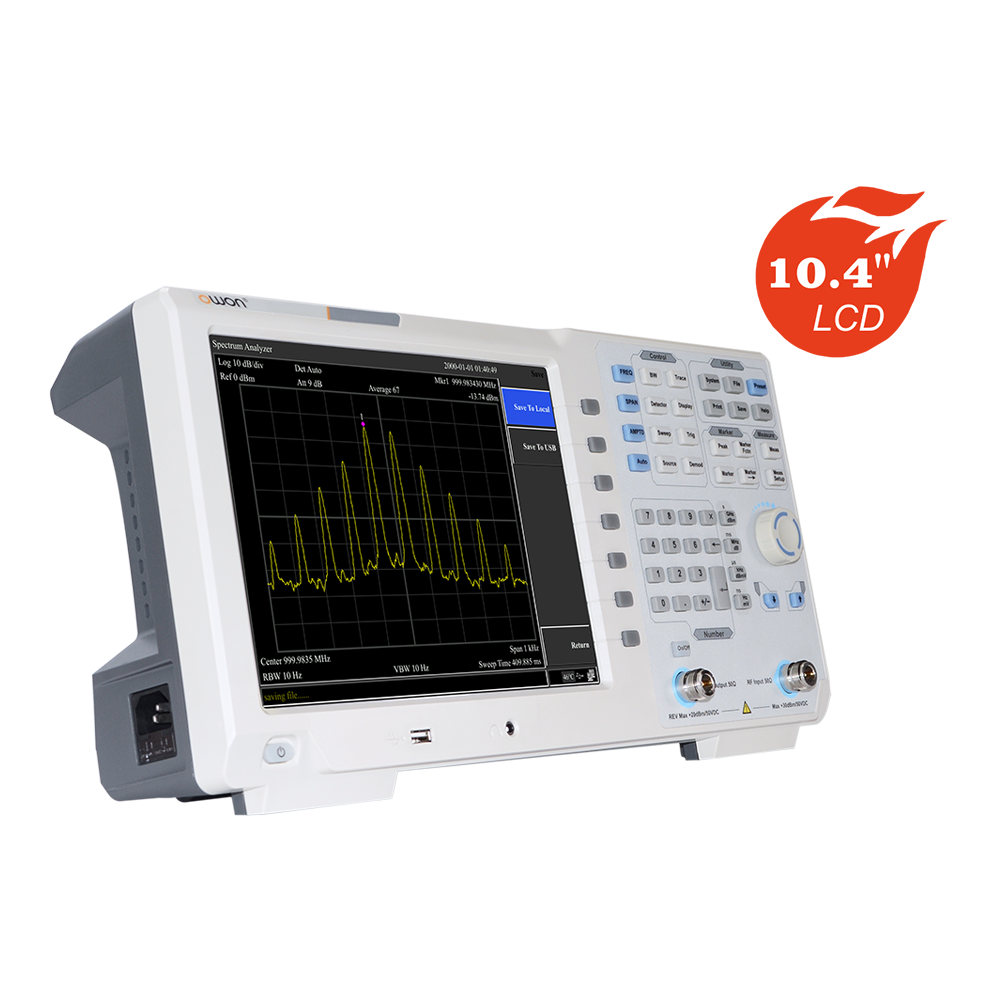

OWON XSA1000TG Series Spectrum Analyzer
- Frequency range from 9 kHz to 7.5 GHz
- Displayed average noise level down to -160 dBm
- Integrated tracking generator up to 7.5 GHz
- Phase noise up to -98 dBc/Hz @1GHz
- Amplitude accuracy < 1.5 dB
- 10 Hz minimum RBW
- EMI pre-compliance testing support
- Pass/Fail testing with alert function
- 10.4-inch large display
- Multiple interfaces: USB, LAN, VGA, audio
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XSA1000TG Series provides a complete RF testing solution by integrating a tracking generator directly into the analyzer. With up to 7.5 GHz frequency coverage and strong sensitivity (-160 dBm), it is suitable for RF design, filter testing, EMI pre-compliance, and signal analysis. Its pass/fail testing and multiple connectivity options make it ideal for both laboratory and production line applications.
Specifications
| Models | Variants | XSA1015TG (1.5GHz), XSA1032TG (3.2GHz), XSA1036TG (3.6GHz), XSA1075TG (7.5GHz) |
| Frequency | Range | 9 kHz – 1.5 / 3.2 / 3.6 / 7.5 GHz |
| Resolution | 1 Hz | |
| Bandwidth | RBW | 10 Hz – 500 kHz, 1 MHz, 3 MHz |
| VBW | 10 Hz – 3 MHz | |
| Phase Noise | @1GHz offset 10kHz | < -98 dBc/Hz |
| Amplitude | Range | DANL to +20 dBm |
| Accuracy | < 1.5 dB | |
| Noise Level | DANL (Preamp ON) | Up to -160 dBm |
| Tracking Generator | Range | 100 kHz – 7.5 GHz (built-in) |
| Output Level | -40 dBm to 0 dBm | |
| Display | Screen | 10.4-inch TFT LCD |
| Connectivity | Interfaces | USB Host, USB Device, LAN, VGA, Audio, REF |
| Physical | Dimensions | 421 × 221 × 115 mm |
| Weight | Approx. 5 kg |
