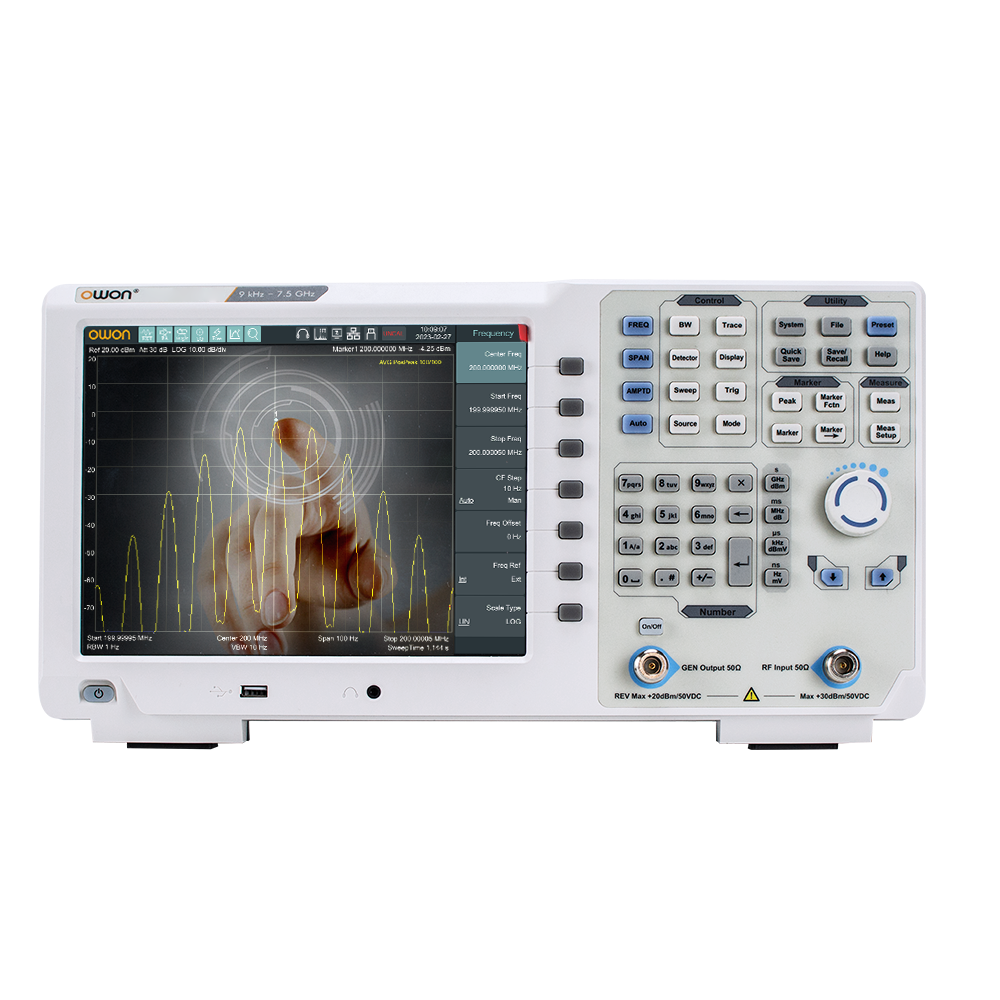

OWON XSA1000P Series Spectrum Analyzer
- Wide frequency range from 9 kHz to 7.5 GHz
- Ultra-low DANL down to -163 dBm
- High phase noise performance (-106 dBc/Hz @1GHz)
- 1 Hz minimum RBW for precise signal separation
- Amplitude accuracy < 0.7 dB
- EMI pre-compliance testing with optional EMC software
- Waterfall plot for signal behavior over time
- Modulation analysis and audio demodulation
- Pass/Fail testing with alert function
- 10.4-inch multi-touch display
- Multiple interfaces: USB, LAN, HDMI
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XSA1000P Series provides laboratory-grade performance with ultra-low noise floor and high accuracy. It supports advanced analysis functions such as waterfall display, modulation quality analysis, and EMI pre-compliance testing. With up to 7.5 GHz frequency range and multiple connectivity options, it is ideal for R&D labs, EMC testing, RF engineering, and production environments.
Specifications
| Models | Variants | XSA1015P (1.5GHz), XSA1036P (3.6GHz), XSA1075P (7.5GHz) |
| Frequency | Range | 9 kHz – 1.5 GHz / 3.6 GHz / 7.5 GHz |
| Resolution | 1 Hz | |
| Bandwidth | RBW | 1 Hz – 1 MHz |
| VBW | 10 Hz – 3 MHz | |
| Phase Noise | @1GHz offset 10kHz | < -106 dBc/Hz |
| Amplitude | Range | DANL to +20 dBm |
| Accuracy | < 0.7 dB | |
| Noise Level | DANL (Preamp ON) | Up to -163 dBm |
| Tracking Generator | Range | 100 kHz – 7.5 GHz (optional) |
| Output Level | -40 dBm to 0 dBm | |
| Display | Screen | 10.4-inch TFT LCD (1024 × 768) |
| Connectivity | Interfaces | USB Host, USB Device, LAN, HDMI, Audio |
| Physical | Dimensions | 375 × 185 × 120 mm |
| Weight | Approx. 5 kg |
