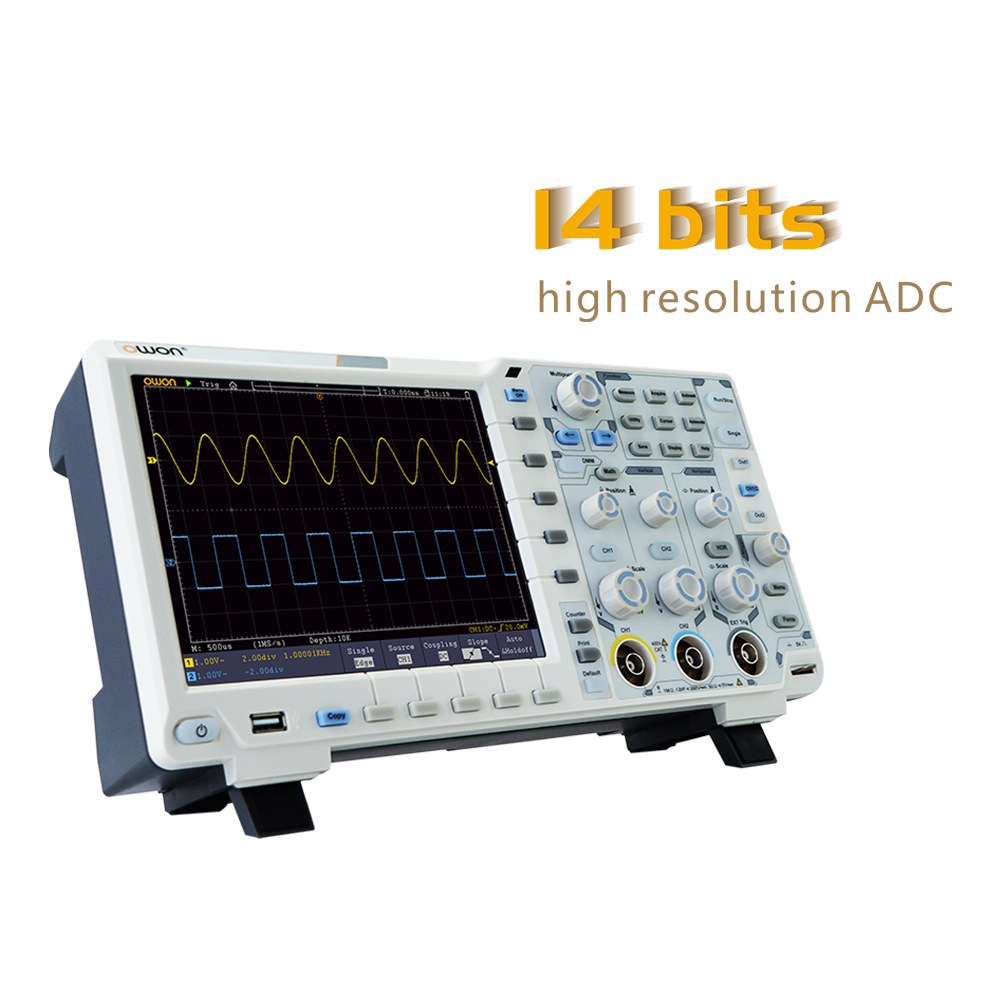

OWON XDS3000-E Series 4CH 8/14-bit Touchscreen Digital Oscilloscope
- 4-channel oscilloscope with 60MHz to 200MHz bandwidth options
- Sampling rate up to 1 GS/s (500MS/s per channel)
- Selectable 8-bit or 14-bit high-resolution ADC
- 40M deep memory record length
- Waveform refresh rate up to 70,000 wfms/s
- Low background noise for accurate signal capture
- 8-inch 800×600 LCD display with optional capacitive multi-touch
- Multi-function: Oscilloscope, waveform generator, multimeter, data logger, frequency counter, protocol decoder
- Supports SCPI and LabVIEW for remote control
- Advanced trigger modes including protocol triggers
- Bus decoding support: I2C, SPI, RS232, CAN (optional)
- Supports WiFi module and battery operation (portable testing)
- Multiple interfaces: USB Host, USB Device, LAN, VGA, AUX, PictBridge
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XDS3000-E Series delivers flexible performance with selectable 8-bit or 14-bit ADC resolution, enabling detailed waveform analysis. Its multifunction integration allows it to operate as a complete testing platform including waveform generation and data logging. With optional WiFi, battery support, and touchscreen operation, it is ideal for both lab and field applications. The high waveform refresh rate and deep memory ensure accurate capture of fast and rare signals.
Specifications
| Oscilloscope | Models | XDS3064E, XDS3104E, XDS3064AE, XDS3104AE, XDS3104, XDS3204E, XDS3204AE |
| Bandwidth | 60MHz / 100MHz / 200MHz | |
| Sample Rate | 1 GS/s (500MS/s per channel) | |
| Vertical Resolution | 8-bit / 14-bit ADC | |
| Record Length | 40M | |
| Channels | 4 | |
| Horizontal Scale | 1ns/div – 1000s/div (1-2-5 step) | |
| Performance | Waveform Refresh Rate | 45,000 – 70,000 wfms/s |
| Vertical Sensitivity | 1mV/div – 10V/div | |
| Time Accuracy | ±2.5 ppm | |
| Display | Screen | 8-inch LCD, 800 × 600 resolution (optional touch) |
| Trigger | Trigger Types | Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN (optional) |
| Trigger Modes | Auto, Normal, Single | |
| Decoding | Bus Decode | I2C, SPI, RS232, CAN (optional) |
| Math Functions | Operations | +, −, ×, ÷, FFT, Integration, Differentiation, Square Root, User-defined |
| Advanced | Frequency Counter | Available |
| Interfaces | Connectivity | USB Host, USB Device, LAN, VGA (optional), AUX, PictBridge, Trigger Out |
| Power | Supply | 100V – 240V AC, 50/60Hz, CAT II |
| Battery (Optional) | 3.7V, 13200mAh | |
| Physical | Dimensions | 340 × 177 × 90 mm |
| Optional Modules | Features | WiFi, VGA+AV, AWG (selected models), Digital Multimeter, Capacitive Touch Screen |
