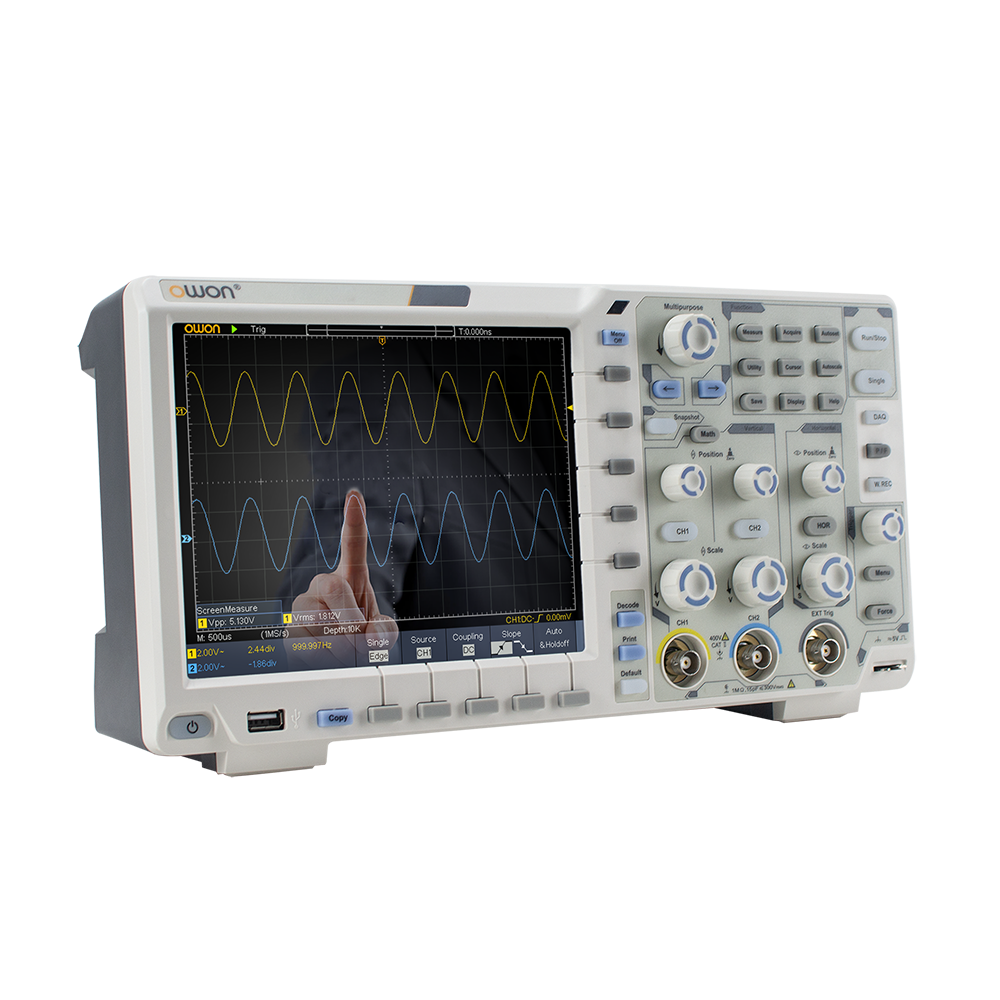

OWON 2CH XDS2000 Series Digital Oscilloscope
- 2-channel digital oscilloscope with 100MHz and 200MHz bandwidth options
- Real-time sampling rate up to 1 GS/s
- Memory depth up to 80M (optional)
- High waveform capture rate up to 75,000 wfms/s
- Advanced trigger modes: Edge, Video, Pulse Width, Slope, Runt, Window, Timeout, Nth Edge, Logic
- Supports serial bus triggering and decoding: I2C, SPI, RS232, CAN
- Powerful math functions: FFT, addition, subtraction, multiplication, division, user-defined
- Supports SCPI remote control commands
- Multiple interfaces: USB Host, USB Device, LAN, VGA, Pass/Fail output
- 8-inch 800×600 high-resolution touch screen LCD
- Built-in frequency counter and Lissajous display support
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XDS2000 Series offers bandwidth options up to 200MHz with a real-time sampling rate of 1GS/s, ensuring accurate waveform capture. With deep memory up to 80M and high refresh rate, it allows detection of transient signals efficiently. Advanced triggering and serial decoding capabilities make it suitable for embedded systems and communication analysis. Its intuitive touch interface and multiple connectivity options enhance usability in both lab and teaching environments.
Specifications
| Oscilloscope | Models | XDS2102, XDS2202 |
| Bandwidth | 100MHz / 200MHz | |
| Sample Rate | 1 GS/s | |
| Record Length | 40M / 80M (optional) | |
| Channels | 2 + 1 External | |
| Horizontal Scale | 2ns/div – 1000s/div (1-2-5 step) | |
| Rise Time | ≤3.5ns (100MHz), ≤1.75ns (200MHz) | |
| Performance | Waveform Refresh Rate | 75,000 wfms/s |
| Channel Isolation | 50Hz: 100:1, 10MHz: 40:1 | |
| Max Input Voltage | ≤300Vrms (1MΩ) | |
| DC Accuracy | ±4% (1mV), ±3% (≥2mV) | |
| Vertical Sensitivity | 1mV/div – 10V/div | |
| Vertical Range | ±2V to ±200V | |
| Display | Screen | 8-inch LCD, 800 × 600 touch display |
| Trigger | Trigger Types | Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN |
| Trigger Modes | Auto, Normal, Single | |
| Decoding | Bus Decode | I2C, SPI, RS232, CAN |
| Math Functions | Operations | +, −, ×, ÷, FFT, Integration, Differentiation, Square Root, User-defined, Digital Filters (LPF, HPF, BPF, BRF) |
| Measurement | Automatic Measurements | Vpp, Vrms, Frequency, Period, Rise/Fall Time, Duty Cycle, Phase, Pulse Count, Delay and more |
| Cursor Measurement | ΔV, ΔT, Auto Cursor RMS | |
| Advanced | Lissajous Figure | Full bandwidth, ±3° phase difference |
| Frequency Counter | Available | |
| Storage | Waveform Storage | 100 waveforms |
| Interfaces | Connectivity | USB Host, USB Device, LAN, VGA, Pass/Fail Output |
| Power | Supply | 100V – 240V AC, 50/60Hz, CAT II |
