Benchtop Multimeters

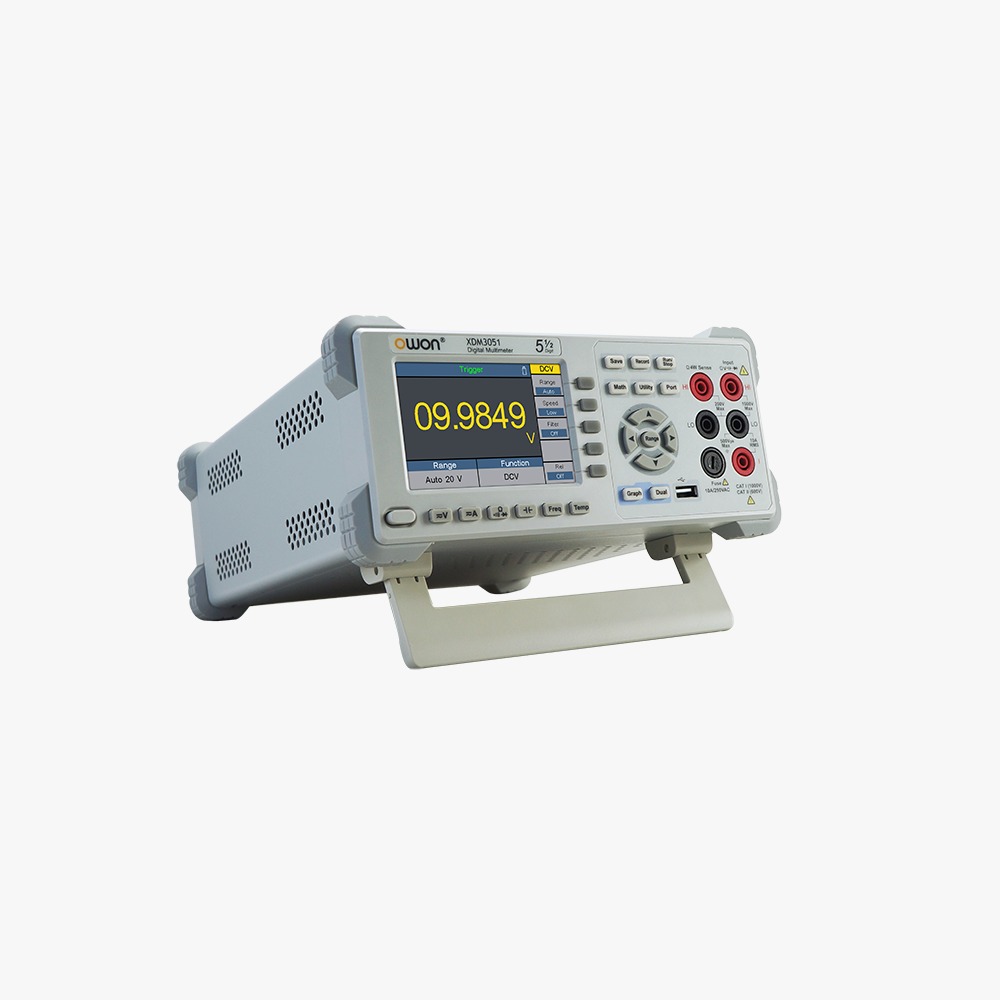

OWON XDM3051 Bench-type Digital Multimeter
- 5½-digit high-resolution benchtop multimeter
- Ultra-high accuracy up to ±0.015% (DC voltage)
- Fast reading rate up to 150 readings per second
- True RMS AC voltage and current measurement
- Dual-line display with trend chart analysis
- Advanced data logging up to 1M points
- SCPI support with remote control via LAN, USB, RS232, and optional WiFi
- Multiple interfaces: USB Host/Device, LAN, RS232, external trigger
- 4-inch high-resolution LCD (480 × 320)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XDM3051 delivers superior measurement accuracy and speed, making it ideal for demanding applications such as calibration labs, R&D, and industrial testing. With extensive connectivity options and large data logging capacity, it supports automated workflows and long-term monitoring. Its 5½-digit resolution ensures detailed and reliable measurement results.
Specifications
| Display | 5½ digits, dual-line display | |
| Measurement Speed | Up to 150 readings/sec | |
| DC Voltage | Range | 200mV – 1000V |
| Accuracy | Up to ±0.015% | |
| AC Voltage | Range | 200mV – 750V (True RMS) |
| DC Current | Range | 200µA – 10A |
| AC Current | Range | 20mA – 10A (True RMS) |
| Resistance | Range | 200Ω – 100MΩ |
| Frequency | Range | Up to 1MHz (signal dependent) |
| Capacitance | Range | 2nF – 10000µF |
| Temperature | Support | Thermocouple (B/E/J/K/N/R/S/T), RTD (Pt100, Pt385) |
| Logging | Duration | Minimum 5ms |
| Points | Up to 1M points | |
| Interfaces | Connectivity | USB Host, USB Device, LAN, RS232, WiFi (optional), External Trigger |
| Display | Screen | 4-inch LCD (480 × 320) |
