Benchtop Multimeters

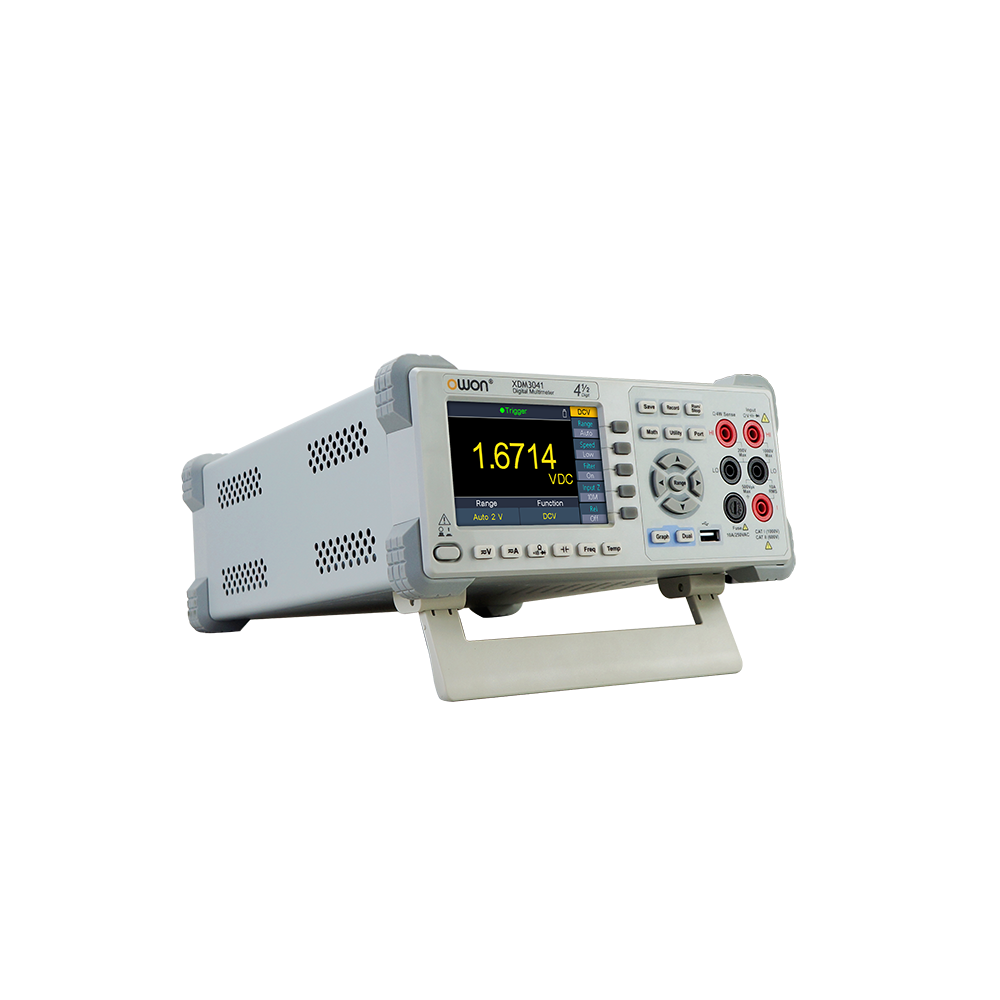

OWON XDM3041 Bench-type Digital Multimeter
- 4½-digit high-resolution benchtop multimeter
- High-speed measurement up to 150 readings per second
- True RMS AC voltage and current measurement
- Dual-line display with trend chart analysis
- Advanced data logging with up to 1M points
- SCPI support for remote control and automation
- Multi-interface connectivity: USB Host/Device, LAN, RS232, optional WiFi
- External trigger input support
- 4-inch high-resolution LCD (480 × 320)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The XDM3041 combines fast sampling rates with reliable measurement accuracy, making it suitable for automated test systems and industrial environments. With support for multiple communication interfaces and large data logging capacity, it enables efficient monitoring and integration into modern testing workflows.
Specifications
| Display | 4½ digits, dual-line display | |
| Measurement Speed | Up to 150 readings/sec | |
| DC Voltage | Range | 600mV – 1000V |
| Accuracy | Up to ±0.02% | |
| AC Voltage | Range | 600mV – 750V (True RMS) |
| DC Current | Range | 600µA – 10A |
| AC Current | Range | 60mA – 10A (True RMS) |
| Resistance | Range | 600Ω – 100MΩ |
| Frequency | Range | Up to 1MHz (signal dependent) |
| Capacitance | Range | 2nF – 10000µF |
| Temperature | Support | Thermocouple (B/E/J/K/N/R/S/T), RTD (Pt100, Pt385) |
| Logging | Duration | Minimum 5ms |
| Points | Up to 1M points | |
| Interfaces | Connectivity | USB Host, USB Device, LAN, RS232, WiFi (optional), External Trigger |
| Display | Screen | 4-inch LCD (480 × 320) |
