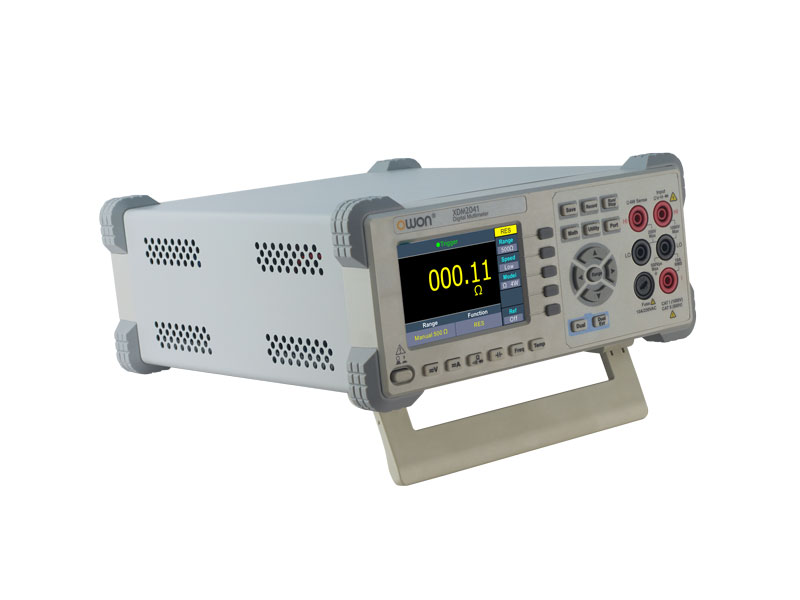

OWON XDM2041 Bench-type Digital Multimeter

  • 4½-digit high-resolution benchtop multimeter
  • 55,000 counts with improved DC voltage accuracy up to 0.025%
  • True RMS AC voltage and current measurement
  • Fast measurement speed up to 65 readings per second
  • Dual-line display for simultaneous readings
  • Trend analysis with chart mode
  • Built-in data logging capability
  • SCPI supported for remote automation
  • 4-inch TFT LCD display (480 × 320)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

Designed for precision measurement, the XDM2041 improves accuracy over entry models and includes advanced functions like four-wire resistance measurement for more reliable low-resistance readings. With True RMS capability, fast sampling, and data logging, it is ideal for professional lab testing, calibration, and engineering applications.

Specifications
Display55,000 counts, dual-line
Measurement SpeedUp to 65 readings/sec
DC VoltageRange50mV – 1000V
AccuracyUp to ±0.025%
AC VoltageRange500mV – 750V
DC CurrentRange500µA – 10A
AC CurrentRange500µA – 10A
ResistanceRange500Ω – 50MΩ
4-Wire MeasurementSupported (Kelvin measurement)
FrequencyRange10Hz – 60MHz
CapacitanceRange50nF – 50mF
TemperatureSupportK-type, PT100
LoggingDuration15ms – 9999s
Points1000 points
DisplayScreen4-inch TFT LCD (480 × 320)
