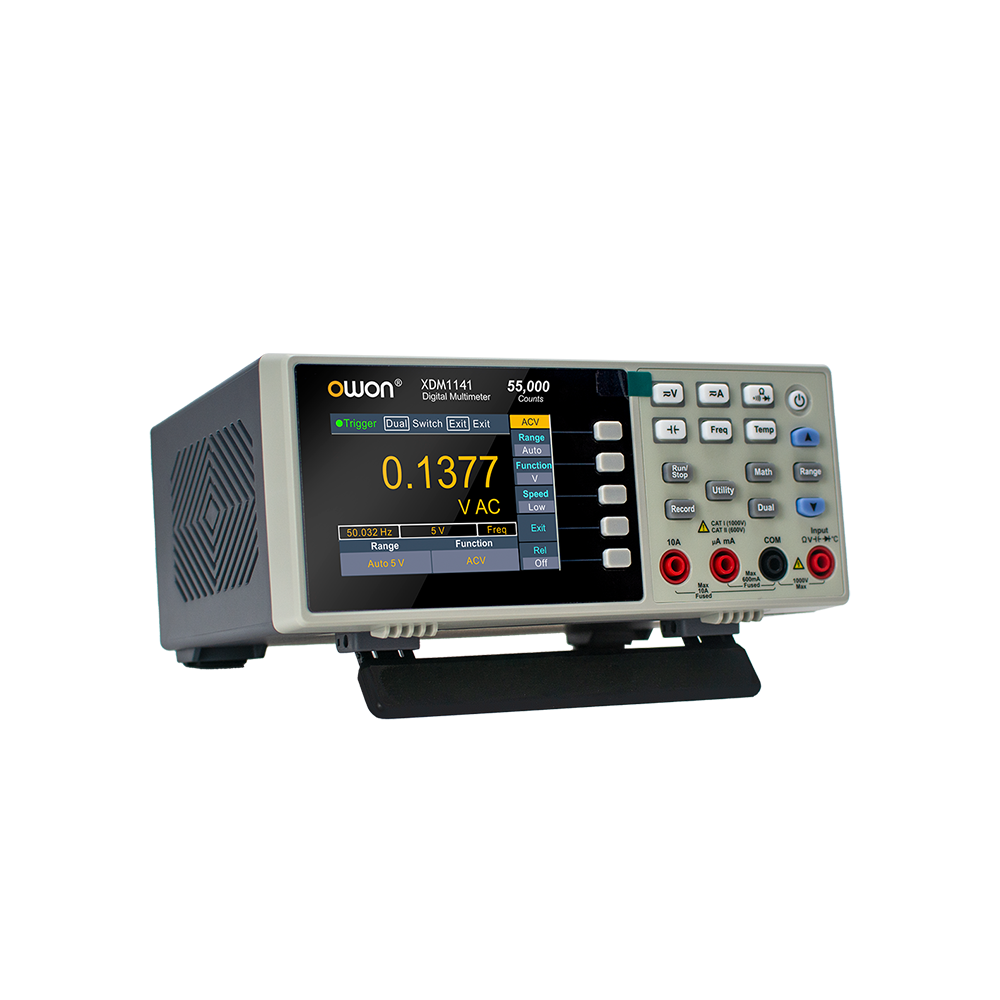

OWON XDM1141 Bench-type Digital Multimeter

  • 4½-digit high-resolution benchtop multimeter
  • 55,000 counts with DC voltage accuracy up to 0.05%
  • Fast measurement speed up to 65 readings per second
  • Dual-line display for simultaneous readings
  • Trend analysis with chart mode
  • Built-in data logging and internal memory storage
  • SCPI support for remote control and automation
  • 3.5-inch high-resolution TFT LCD (480 × 320)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The XDM1141 delivers accurate electrical measurements across voltage, current, resistance, frequency, and more. With enhanced sampling speed and integrated data logging, it supports both real-time monitoring and long-term analysis. Its compact design and SCPI compatibility make it ideal for lab environments and automated test systems.

Specifications
Display55,000 counts, dual-line
Measurement SpeedUp to 65 readings/sec
DC VoltageRange50mV – 1000V
AccuracyUp to ±0.05%
AC VoltageRange500mV – 750V
DC CurrentRange500µA – 10A
AC CurrentRange500µA – 10A
ResistanceRange500Ω – 50MΩ
FrequencyRange10Hz – 60MHz
CapacitanceRange50nF – 50mF
TemperatureSupportK-type, PT100
LoggingDuration15ms – 9999.999s
Points1000 points
DisplayScreen3.5-inch TFT LCD (480 × 320)
PhysicalDimensions200 × 88 × 150 mm
WeightApprox. 0.5 kg
