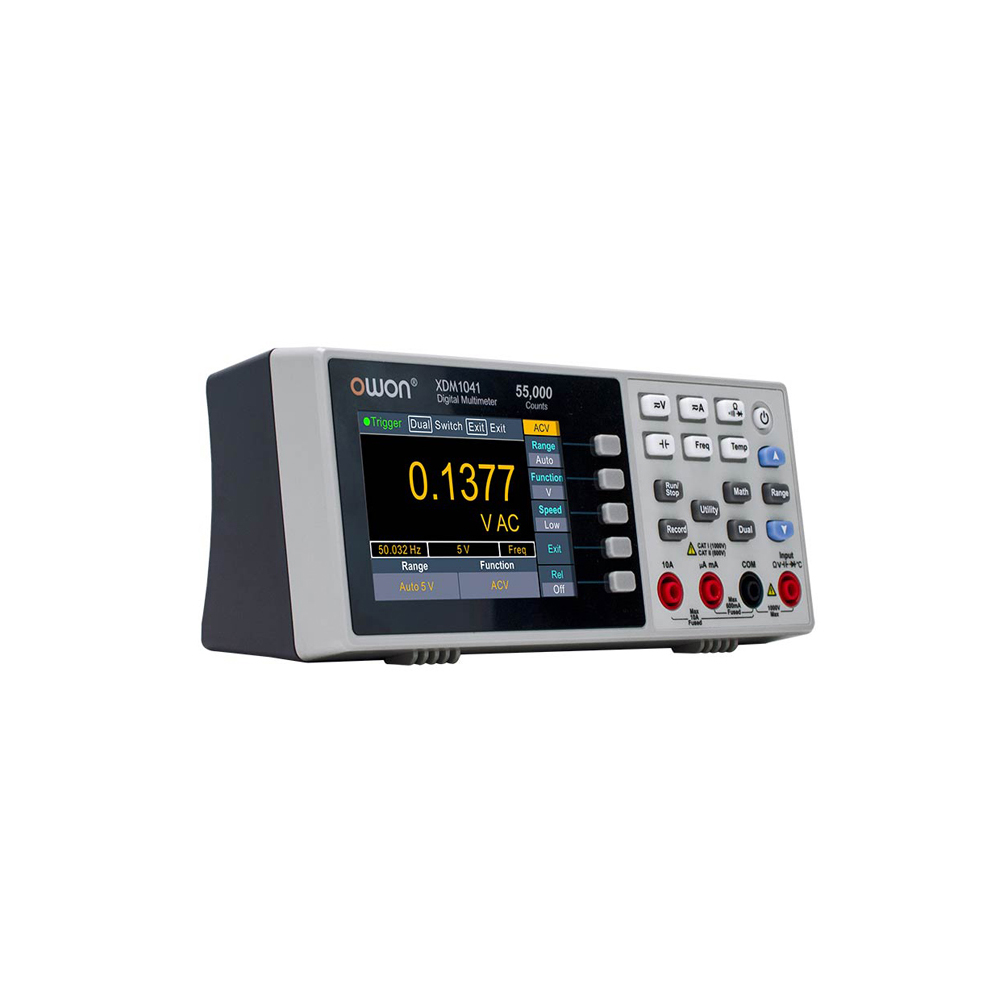

OWON XDM1000 Series Bench-type Digital Multimeter
Benchtop Multimeters

OWON XDM1000 Series Bench-type Digital Multimeter

  • 4½-digit high-resolution benchtop multimeter
  • 55,000 counts with DC voltage accuracy up to 0.05%
  • True RMS AC voltage and current measurement
  • Up to 60 readings per second
  • Dual-line display for better visibility
  • Trend analysis with chart mode
  • Built-in data logging and internal storage
  • SCPI support for automation and PC control
  • Available in AC-powered (XDM1041) and battery-powered (XDM1241)
  • 3.5-inch TFT LCD (480 × 320)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

This series provides high accuracy and stability for measuring voltage, current, resistance, frequency, and more. With advanced logging and visualization features, it is ideal for engineers, technicians, and researchers who require detailed analysis and long-term monitoring.

Specifications
ModelsXDM1041 (AC), XDM1241 (Battery)
Display55,000 counts, dual-line
Measurement SpeedUp to 60 readings/sec
DC VoltageRange50mV – 1000V
AccuracyUp to ±0.05%
AC VoltageRange500mV – 750V
DC CurrentRange500µA – 10A
AC CurrentRange500µA – 10A
ResistanceRange500Ω – 50MΩ
FrequencyRange10Hz – 60MHz
CapacitanceRange50nF – 50mF
TemperatureSupportK-type, PT100
LoggingPoints1000 points
DisplayScreen3.5-inch LCD (480 × 320)
PhysicalDimensions235 × 88 × 65 mm
WeightApprox. 0.45 kg
