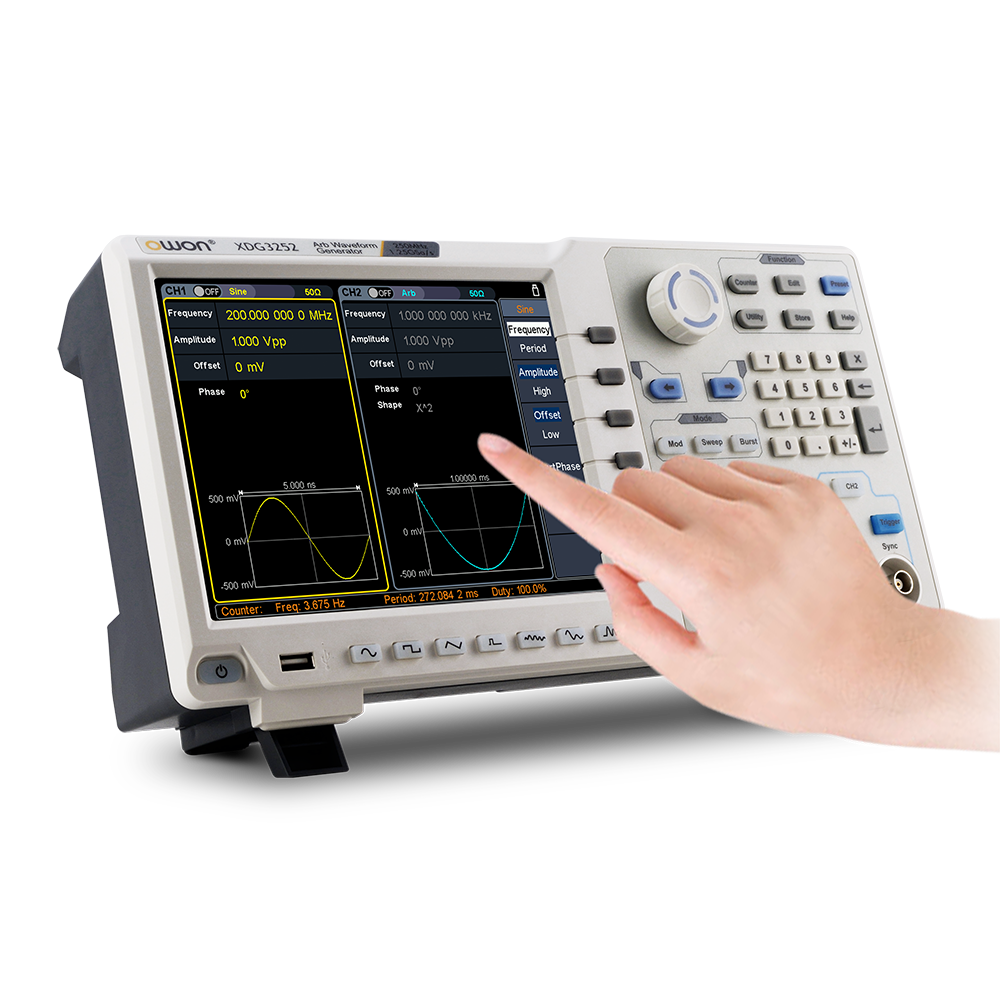

OWON XDG3000 Series 2-CH Arbitrary Waveform Generator
Dual Channels

OWON XDG3000 Series 2-CH Arbitrary Waveform Generator

  • Dual-channel arbitrary waveform generator
  • Frequency output up to 250MHz
  • Ultra-high sample rate of 1.25GSa/s
  • 14-bit vertical resolution for high precision
  • Up to 1M points arbitrary waveform length
  • 6 standard waveforms and 150+ built-in arbitrary waveforms
  • Advanced modulation: AM, FM, PM, FSK, PSK, BPSK, QPSK, PWM, Sweep, Burst
  • High-accuracy frequency counter (100mHz – 200MHz)
  • SCPI and LabVIEW supported for automation
  • 8-inch touch screen LCD (800 × 600)
  • Multiple interfaces: USB Host, USB Device, LAN
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The XDG3000 Series represents OWON’s top-tier waveform generator lineup, offering up to 250MHz frequency output and a powerful 1.25GSa/s sampling rate. With up to 1M waveform memory and extensive modulation capabilities, it enables highly accurate and complex signal generation. Its large touchscreen display and multiple connectivity options make it ideal for professional labs, communication testing, and automated environments.

Specifications
ModelsXDG3252, XDG3202, XDG3162, XDG3102, XDG3082
Channels2
PerformanceFrequency Output80MHz – 250MHz (model dependent)
Sample Rate1.25GSa/s
Vertical Resolution14-bit
Waveform Length2 – 1M points
WaveformsStandardSine, Square, Pulse, Ramp, Noise, Harmonic
Arbitrary150 built-in + user-defined waveforms
FrequencyRange1μHz – 250MHz (model dependent)
Accuracy±1 ppm (0°C – 40°C)
AmplitudeOutput Range1mVpp – 10Vpp (low freq), down to 1Vpp at 250MHz (50Ω)
OffsetDC Offset Range±5Vpk (50Ω), ±10Vpk (High-Z)
ModulationTypesAM, FM, PM, PWM, FSK, PSK, QPSK, ASK, BPSK, Sweep, Burst
MeasurementFrequency Counter100mHz – 200MHz, multi-parameter measurement
InterfacesConnectivityUSB Host, USB Device, LAN
DisplayScreen8-inch touch LCD (800 × 600)
PhysicalDimensions340 × 177 × 90 mm
WeightApprox. 2.5 kg
