OWON XDG2000 Series 2-CH Arbitrary Waveform Generator
Dual Channels

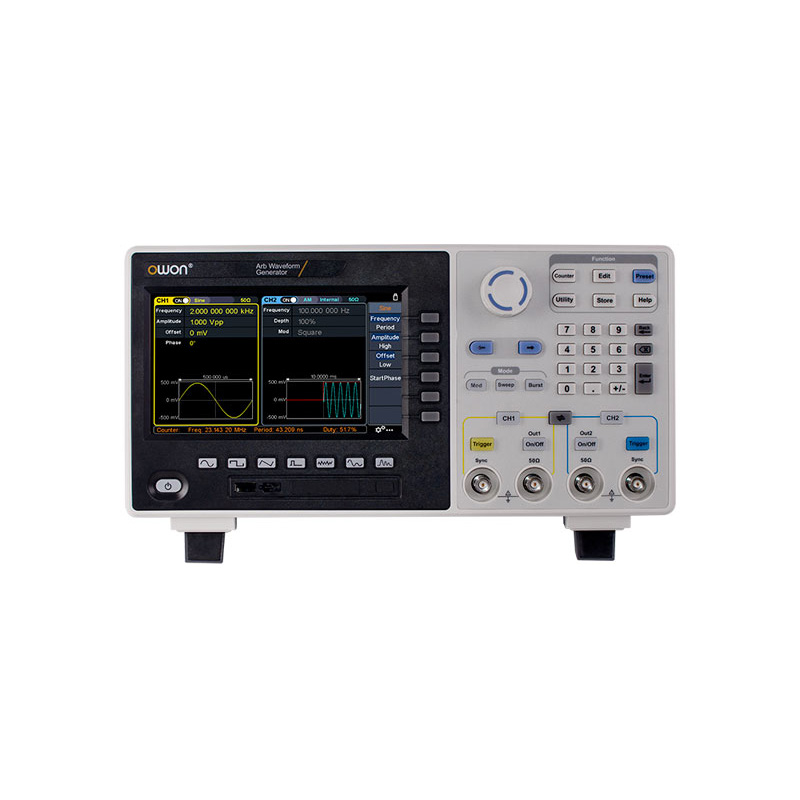

OWON XDG2000 Series 2-CH Arbitrary Waveform Generator

  • Dual-channel arbitrary waveform generator
  • Frequency output up to 100MHz
  • High sample rate up to 500MSa/s
  • 14-bit vertical resolution for precise signal generation
  • Large arbitrary waveform length up to 10M points
  • 6 standard waveforms and 150 built-in arbitrary waveforms
  • Advanced modulation: AM, FM, PM, FSK, PSK, QPSK, PWM, Sweep, Burst, and more
  • Integrated high-accuracy frequency counter (100mHz – 200MHz)
  • SCPI and LabVIEW supported for automation
  • 7-inch high-resolution LCD (800 × 480)
  • Multiple communication interfaces: USB, LAN, RS232 (optional)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The XDG2000 Series offers powerful signal generation with up to 100MHz output and a high 500MSa/s sample rate. With 14-bit resolution and up to 10M waveform memory depth, it enables highly accurate and detailed waveform creation. Advanced modulation functions and integrated frequency counter make it ideal for communication systems, embedded design, and automated testing environments.

Specifications
ModelsXDG2100, XDG2080, XDG2060, XDG2035, XDG2030
Channels2
PerformanceFrequency Output30MHz – 100MHz (model dependent)
Sample Rate500MSa/s
Vertical Resolution14-bit
Waveform Length2 – 10M points
WaveformsStandardSine, Square, Pulse, Ramp, Noise, Harmonic
Arbitrary150 built-in + user-defined waveforms
FrequencyRange1μHz – 100MHz (model dependent)
Accuracy±2 ppm (25°C ±5°C)
AmplitudeOutput Range1mVpp – 10Vpp (≤25MHz), 1mVpp – 5Vpp (≤60MHz), 1mVpp – 2.5Vpp (≤100MHz)
ModulationTypesAM, FM, PM, FSK, PSK, QPSK, ASK, PWM, Sweep, Burst, and more
MeasurementFrequency Counter100mHz – 200MHz, multi-parameter measurement
InterfacesConnectivityUSB Host, USB Device, LAN, RS232 (optional)
DisplayScreen7-inch LCD (800 × 480)
PhysicalDimensions340 × 177 × 90 mm
WeightApprox. 2.3 kg
