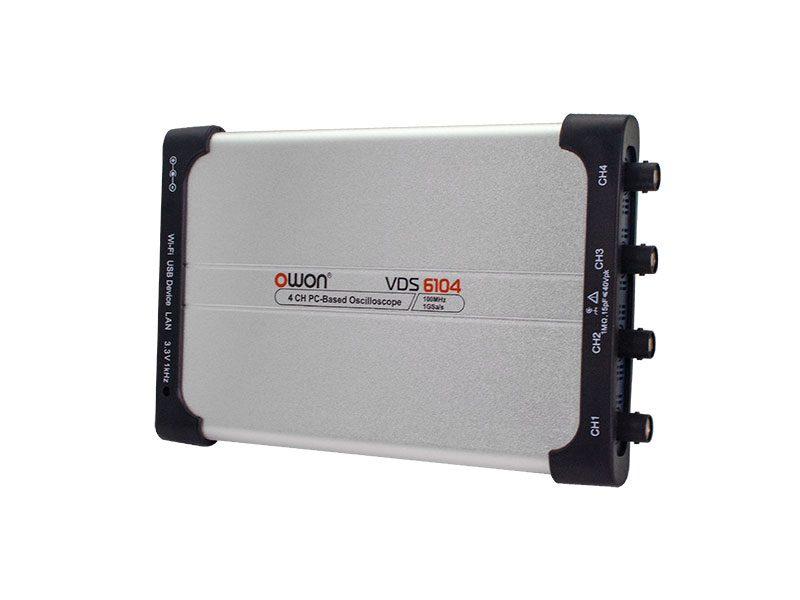

OWON VDS6000 Series 4CH PC (Virtual) Oscilloscope

  • 4-channel PC-based (virtual) oscilloscope with ultra-thin design
  • Bandwidth up to 100MHz
  • Real-time sampling rate up to 1 GSa/s
  • Selectable vertical resolution: 8-bit / 12-bit / 14-bit
  • 10M deep memory record length
  • USB Type-C powered with wide voltage support (5–15V)
  • Supports WiFi connectivity (optional accessory)
  • Cross-platform support: Windows, Linux, Android, iOS
  • SCPI protocol and LabVIEW supported
  • X-Y mode and waveform dual-view display
  • Supports secondary development (SDK)
  • Compact and lightweight for portable testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The VDS6000 4-channel series provides advanced measurement capabilities in a compact USB-powered form. With support for multiple operating systems and optional WiFi connectivity, it offers flexible deployment in modern testing environments. Its multi-channel capability and high-resolution ADC options make it ideal for complex signal debugging and analysis.

Specifications
OscilloscopeModelsVDS6074, VDS6104, VDS6074A, VDS6104A
Bandwidth70MHz / 100MHz
Sample RateUp to 1 GSa/s
Channels4
Record Length10M
Horizontal Scale1ns/div – 100s/div (1-2-5 step)
DisplayInterfacePC-based (software UI)
PerformanceVertical Resolution8-bit / 12-bit / 14-bit (model dependent)
Vertical Sensitivity2mV/div – 5V/div
Input Impedance1MΩ ±2% || 15pF ±5pF
Max Input Voltage40V (DC + AC Peak)
TriggerTrigger TypesEdge, Pulse, Video, Slope
Trigger ModesAuto, Normal, Single
MeasurementAutomatic MeasurementsVpp, Vrms, Frequency, Period, Rise/Fall Time, Duty Cycle, Delay and more
Cursor MeasurementΔV, ΔT
AdvancedAcquisition ModesSample, Peak Detect, Average
Frequency CounterSupported
InterfacesConnectivityUSB Type-C, USB Host, LAN, WiFi (optional)
PowerSupplyUSB Type-C (5–15V)
PhysicalDimensions190 × 120 × 18 mm
WeightApprox. 0.45 kg
