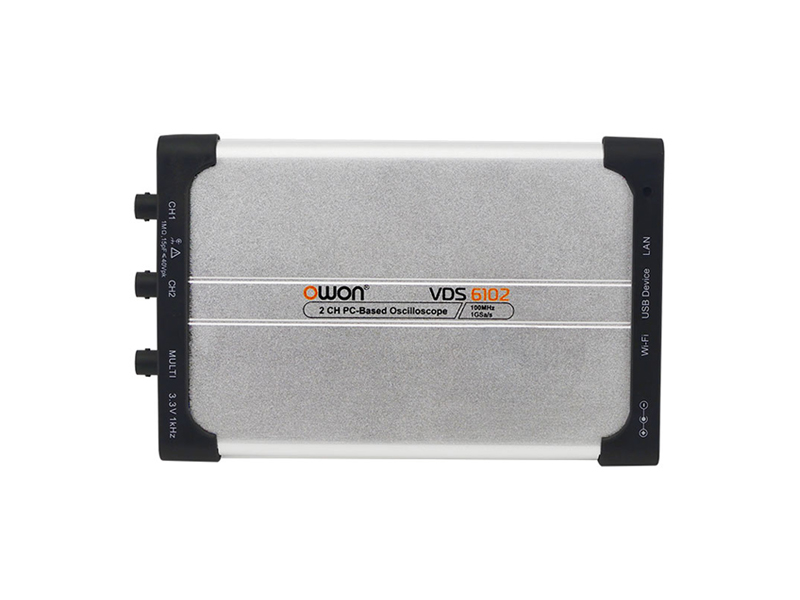

OWON VDS6000 Series 2CH PC (Virtual) Oscilloscope
- 2-channel PC-based (virtual) oscilloscope with ultra-thin design
- Bandwidth up to 100MHz
- Real-time sampling rate up to 1 GSa/s
- Selectable vertical resolution: 8-bit / 12-bit / 14-bit
- Built-in 5MHz function generator
- 10M deep memory record length
- USB Type-C powered with wide voltage support (5–15V)
- Supports WiFi connectivity (optional accessory)
- Cross-platform support: Windows, Linux, Android, iOS
- SCPI protocol and LabVIEW supported
- X-Y mode and waveform display on same screen
- Compact and lightweight for portable testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The VDS6000 Series offers powerful signal analysis in a compact USB-powered form. With support for multiple operating systems and optional WiFi connectivity, it provides flexibility for modern testing environments. Its high-resolution ADC options and integrated function generator make it suitable for both laboratory and field applications. The ultra-thin design ensures easy portability while maintaining strong performance.
Specifications
| Oscilloscope | Models | VDS6102, VDS6102A |
| Bandwidth | 100MHz | |
| Sample Rate | Up to 1 GSa/s | |
| Channels | 2 + 1 (Function Generator) | |
| Record Length | 10M | |
| Horizontal Scale | 5ns/div – 100s/div (1-2-5 step) | |
| Display | Interface | PC-based (software UI) |
| Performance | Vertical Resolution | 8-bit (VDS6102), 14-bit (VDS6102A) |
| Vertical Sensitivity | 2mV/div – 5V/div | |
| Rise Time | ≤3.5 ns | |
| Input Impedance | 1MΩ ±2% || 15pF ±5pF | |
| Max Input Voltage | 40V (DC + AC Peak) | |
| Trigger | Trigger Types | Edge, Video, Slope, Pulse |
| Trigger Modes | Auto, Normal, Single | |
| Measurement | Automatic Measurements | Vpp, Vrms, Frequency, Period, Rise/Fall Time, Duty Cycle, Delay and more |
| Advanced | Lissajous Figure | Supported (±3° phase difference) |
| Acquisition Modes | Sample, Peak Detect, Average | |
| Interfaces | Connectivity | USB Type-C, LAN, WiFi (optional) |
| Power | Supply | USB Type-C (5–15V) |
| Consumption | ≤8W | |
| Physical | Dimensions | 190 × 120 × 18 mm |
| Weight | Approx. 0.38 kg | |
| Waveform Generator | Frequency | Up to 5 MHz |
| Sample Rate | 25 MSa/s | |
| Resolution | 10-bit | |
| Amplitude | 10mVpp – 5Vpp | |
| Waveforms | Sine, Square, Ramp, Pulse |
