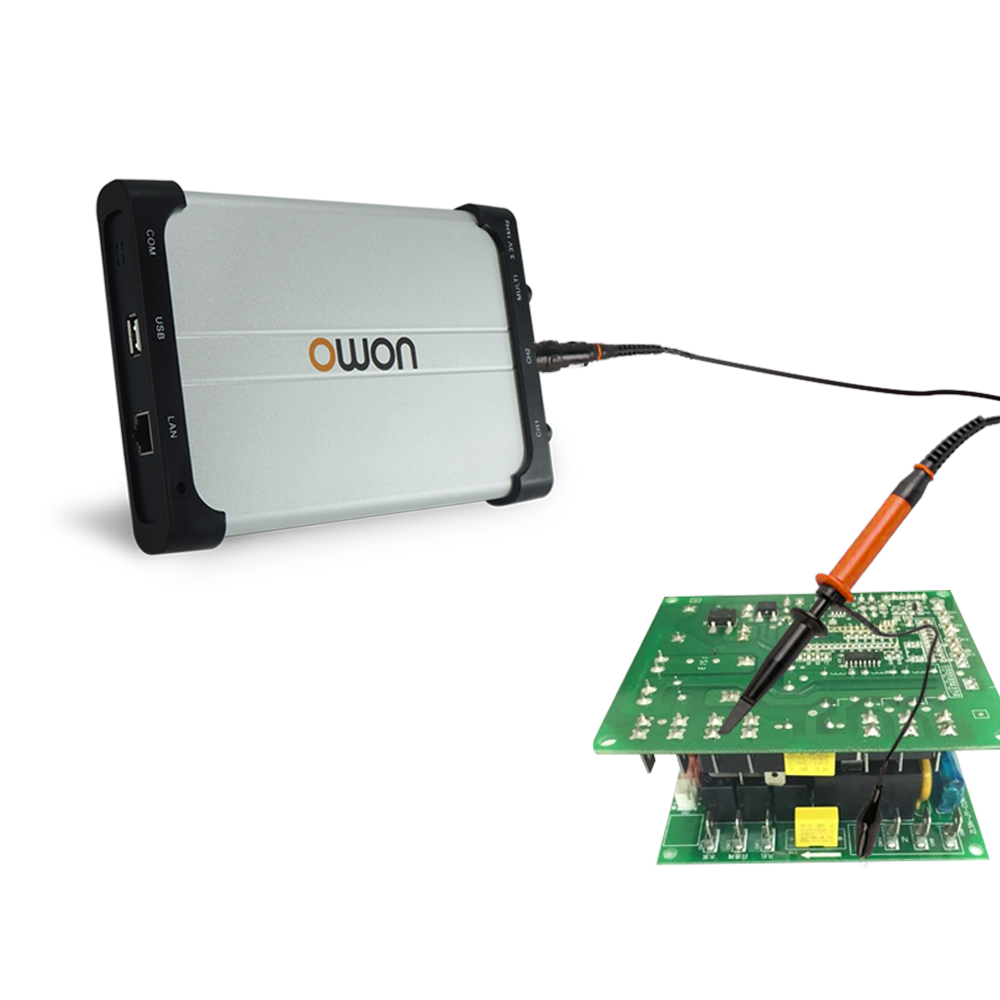

OWON VDS Series PC (Virtual) Oscilloscope
- PC-based (virtual) oscilloscope with ultra-thin portable design
- Bandwidth up to 100MHz
- Real-time sampling rate up to 1 GS/s
- Up to 10M deep memory record length
- Multi-trigger options: Edge, Video, Slope, Pulse, Alternate
- FFT and X-Y mode with dual waveform display
- USB isolation for improved signal integrity and PC protection
- USB-powered with optional LAN remote control
- Supports SCPI and LabVIEW for automation
- Supports external trigger, Pass/Fail output, and TTL interfaces
- Cross-platform usability via PC software
- Lightweight and easy portability
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The VDS Series combines powerful signal analysis with a compact USB-powered design. With support for multiple trigger modes, FFT, and X-Y display, it enables advanced waveform analysis. USB isolation ensures safer operation and cleaner signals, while optional LAN connectivity allows remote control. Its lightweight design makes it suitable for both lab and field environments.
Specifications
| Oscilloscope | Models | VDS1022I, VDS1022, VDS2052, VDS2062, VDS2064, VDS3102, VDS3104 |
| Bandwidth | 25MHz / 60MHz / 100MHz | |
| Sample Rate | 100 MSa/s / 1 GSa/s | |
| Channels | 2CH / 4CH (+ external trigger) | |
| Record Length | 5K / 5M / 10M (model dependent) | |
| Horizontal Scale | 2ns/div – 100s/div (1-2-5 step) | |
| Display | Interface | PC-based software UI |
| Performance | Vertical Resolution | 8-bit ADC |
| Vertical Sensitivity | 2mV/div – 5V/div | |
| Max Input Voltage | 40V / 400V (model dependent) | |
| Trigger | Trigger Types | Edge, Pulse, Video, Slope, Alternate |
| Trigger Modes | Auto, Normal, Single | |
| Acquisition | Modes | Sample, Peak Detect, Average |
| Math Functions | Operations | +, −, ×, ÷, Invert, FFT |
| Interfaces | Connectivity | USB 2.0 (with optional isolation), LAN (optional) |
| Advanced | Special Features | Pass/Fail output, external trigger, TTL interface, X-Y mode |
| Power | Supply | USB 5V / 1A |
| Consumption | ≤2.5W – ≤6.5W | |
| Physical | Dimensions | 170–190 × 120 × 18 mm (model dependent) |
| Weight | Approx. 0.26 – 0.3 kg |
