Handheld Thermal Imagers

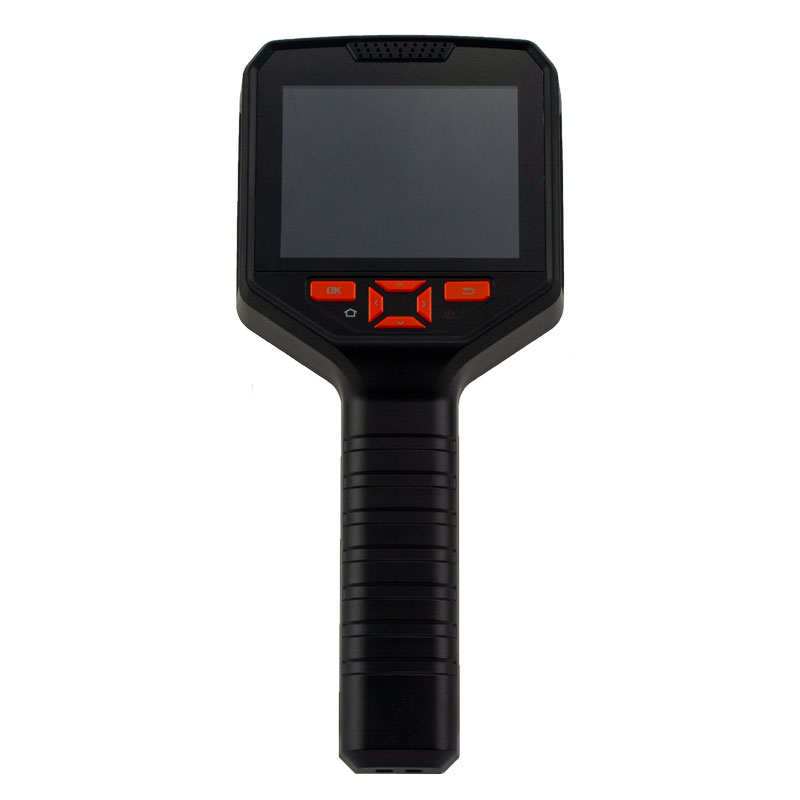

OWON Handheld Thermal Imaging Camera
- Infrared thermal imaging 320×240 resolution (TI332); 220×160 (TI322)
- Three fusion modes of visible and infrared
- Three image enhancement modes for different applications
- Customized high and low temperature limit alarm
- Computer analysis software for professional industry applications
- Multiple measurement methods for detailed temperature inspection
- Five color palettes: Black Hot, White Hot, Rainbow, Iron, Enhanced Iron
- Large internal memory stores up to 20,000 images
- Temperature measurement range -20 °C to +350 °C
- Adjustable emissivity from 0.01 to 0.99, default 0.95
- Three-image storage for multi-view analysis and 3.5-inch TFT LCD display
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
This handheld thermal imager supports TI322 and TI332 models for accurate and fast thermal detection. It features optional Wi-Fi, USB-C charging, a 5000mAh battery, and an intuitive display, making it ideal for building inspection, electrical maintenance, and outdoor field use.
Specifications
| Model | Resolution | TI322 220×160; TI332 320×240 |
| Performance | Frame Rate | 9 Hz |
| Lens | Type | 6.5 mm prime lens |
| Field of View | TI322 | H:35° V:26° |
| TI332 | H:56° V:42° | |
| Optics | Horizontal FOV | 66° |
| Light | LED Torch | Built-in LED light |
| Temperature | Accuracy | ±2 °C (-20 °C to +450 °C ambient) |
| Range | -20 °C to +350 °C | |
| Storage | Memory | 8GB eMMC internal flash |
| Connectivity | Wi-Fi | Optional 2.4G transmission |
| USB | USB Type-C charging and communication | |
| Power | Battery | Built-in 5000mAh Li-ion (~4 hours runtime) |
| Support | Handheld | Handheld lanyard supported |
| Display | Screen | 3.5-inch IPS full-color display |
| Physical | Weight | Approx. 500 g |
