Tablet Oscilloscope

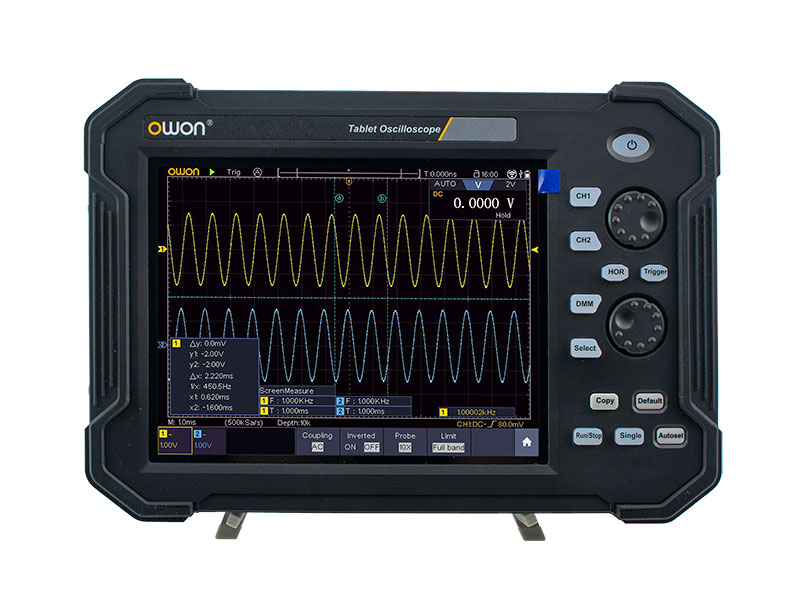

OWON TAO3000 Series 2CH Tablet Digital Oscilloscope
- 3-in-1 multifunction: Oscilloscope + Multimeter + Data Logger
- Dual-channel oscilloscope with 70MHz to 120MHz bandwidth
- Real-time sampling rate up to 1 GS/s
- Optional high-resolution ADC: 8-bit / 12-bit / 14-bit
- 40M deep memory record length
- Waveform refresh rate up to 45,000 wfms/s
- 8-inch capacitive multi-touch display (800×600)
- Built-in 8000mAh battery (up to 5 hours operation)
- Supports SCPI and LabVIEW for automation
- Advanced trigger modes and bus decoding (I2C, SPI, RS232, CAN)
- Multiple interfaces: USB Host, USB Device, LAN, WiFi (optional)
- Compact tablet design for portability and ease of use
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The TAO3000 Series combines the power of a benchtop oscilloscope with the portability of a tablet. Featuring high-resolution ADC options, deep memory, and advanced triggering, it provides precise signal analysis. The built-in multimeter and data logger expand its functionality, while the touchscreen interface offers an intuitive user experience. Its battery-powered design makes it ideal for both lab and field applications.
Specifications
| Oscilloscope | Models | TAO3072, TAO3102, TAO3122, TAO3072A, TAO3102A, TAO3122A |
| Bandwidth | 70MHz / 100MHz / 120MHz | |
| Sample Rate | 1 GS/s | |
| Channels | 2 | |
| Vertical Resolution | 8-bit / 12-bit / 14-bit ADC | |
| Record Length | 40M | |
| Horizontal Scale | 1ns/div – 1000s/div (1-2-5 step) | |
| Display | Screen | 8-inch LCD, 800 × 600 multi-touch display |
| Performance | Waveform Refresh Rate | 45,000 wfms/s |
| Vertical Sensitivity | 1mV/div – 10V/div | |
| Input Impedance | 1MΩ ±2% || 15pF ±5pF | |
| Max Input Voltage | ≤300Vrms | |
| Accuracy | ±2.5 ppm time accuracy | |
| Trigger | Trigger Types | Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth Edge, Logic, I2C, SPI, RS232, CAN (optional) |
| Trigger Modes | Auto, Normal, Single | |
| Decoding | Bus Decode | I2C, SPI, RS232, CAN (optional) |
| Math Functions | Operations | +, −, ×, ÷, FFT, Integration, Differentiation, Square Root, User-defined, Digital Filters |
| Measurement | Automatic Measurements | Vpp, Vrms, Frequency, Period, Rise/Fall Time, Duty Cycle, Phase, Pulse Count and more |
| Storage | Waveform Storage | 100 waveforms |
| Interfaces | Connectivity | USB Host, USB Device, LAN, WiFi (optional), PictBridge |
| Advanced | Frequency Counter | Available |
| Power | Battery | 7.4V, 8000mAh (approx. 5 hours) |
| Physical | Dimensions | 270 × 191 × 48 mm |
| Weight | Approx. 1.7 kg | |
| Multimeter | Resolution | 4½ digits (20000 count) |
| Functions | Voltage, Current, Resistance, Diode, Auto-ranging | |
| Voltage Range | DC up to 1000V, AC up to 750V | |
| Current Range | AC/DC up to 20A |
