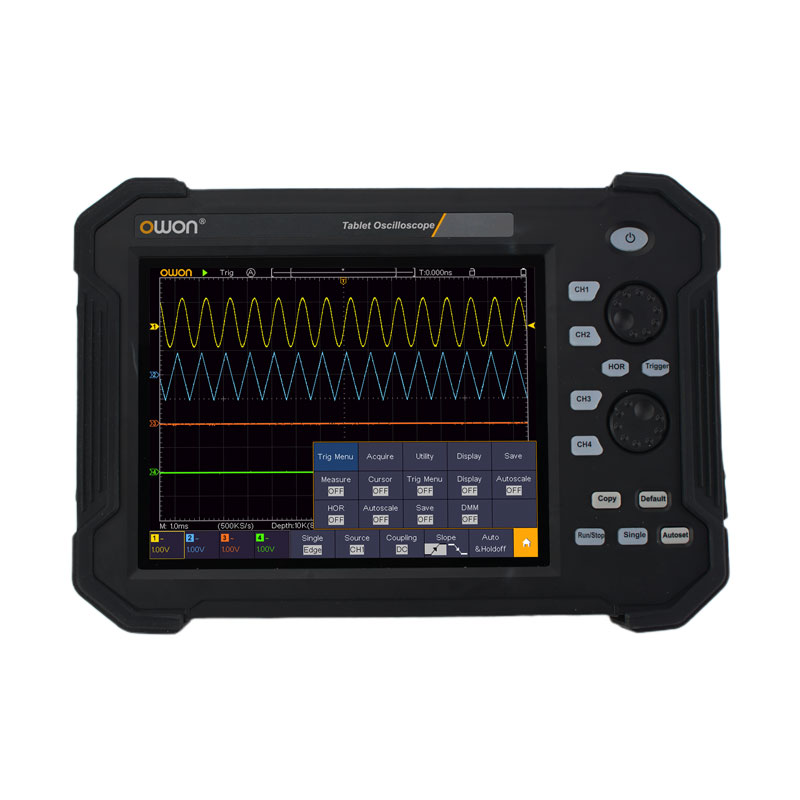

OWON TAO3000 Series 4CH Tablet Digital Oscilloscope
- 4-channel tablet oscilloscope with 70MHz to 100MHz bandwidth
- Real-time sampling rate up to 1 GS/s
- High-resolution ADC options: 8-bit / 12-bit / 14-bit
- 40M deep memory record length
- Waveform refresh rate up to 45,000 wfms/s
- Low background noise for precise measurements
- 8-inch capacitive multi-touch display (800×600)
- Supports SCPI and LabVIEW for automation
- Advanced trigger modes and bus decoding (I2C, SPI, UART, CAN)
- Multiple interfaces: USB Host, USB Device, LAN, WiFi (optional)
- Built-in battery for portable operation (approx. 5 hours)
- Compact tablet design for lab and field use
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The TAO3000 4-channel series combines the power of a traditional oscilloscope with the flexibility of a tablet interface. With support for up to 14-bit resolution, deep memory, and advanced triggering, it enables precise and efficient signal analysis. Its multi-touch interface, built-in battery, and wireless connectivity options make it ideal for both laboratory and field environments.
Specifications
| Oscilloscope | Models | TAO3074, TAO3104, TAO3074A, TAO3104A |
| Bandwidth | 70MHz / 100MHz | |
| Sample Rate | 1 GS/s | |
| Channels | 4 | |
| Vertical Resolution | 8-bit / 12-bit / 14-bit ADC | |
| Record Length | 40M | |
| Horizontal Scale | 1ns/div – 1000s/div (1-2-5 step) | |
| Display | Screen | 8-inch LCD, 800 × 600 multi-touch display |
| Performance | Waveform Refresh Rate | 45,000 wfms/s |
| Vertical Sensitivity | 1mV/div – 10V/div | |
| Input Impedance | 1MΩ ±2% || 15pF ±5pF | |
| Max Input Voltage | ≤300Vrms | |
| Trigger | Trigger Types | Edge, Video, Pulse, Slope, Runt, Window, Timeout, Nth Edge, Logic, I2C, SPI, UART (RS232), CAN (optional) |
| Trigger Modes | Auto, Normal, Single | |
| Decoding | Bus Decode | I2C, SPI, UART (RS232), CAN (optional) |
| Math Functions | Operations | +, −, ×, ÷, FFT, Integration, Differentiation, Square Root, User-defined, Digital Filters |
| Measurement | Automatic Measurements | Vpp, Vrms, Frequency, Period, Rise/Fall Time, Duty Cycle, Phase, Pulse Count and more |
| Storage | Waveform Storage | 100 waveforms |
| Interfaces | Connectivity | USB Host, USB Device, LAN, WiFi (optional), PictBridge |
| Advanced | Frequency Counter | Available |
| Power | Battery | 7.4V, 8000mAh (approx. 5 hours) |
| Physical | Dimensions | 270 × 191 × 48 mm |
| Weight | Approx. 1.7 kg |
