Programmable DC Series

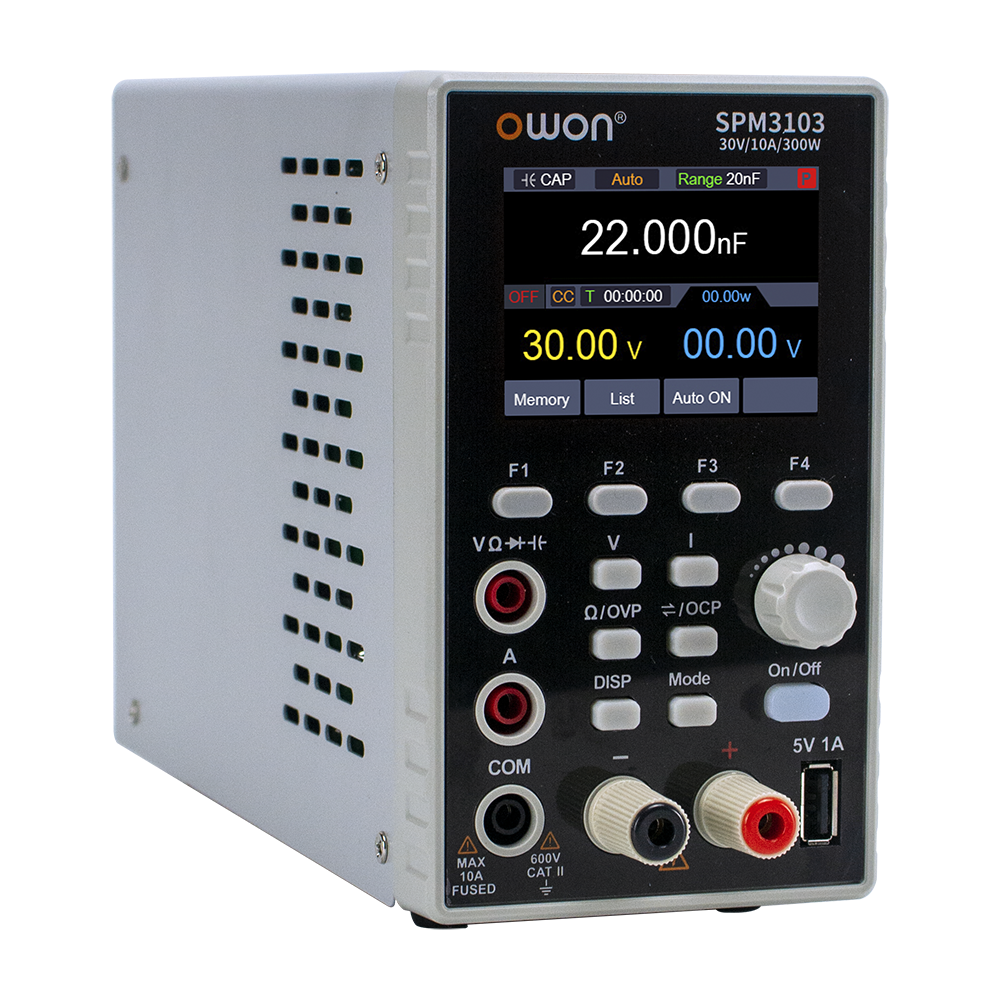

OWON SPM Series 1 CH DC Power Multimeter
- DC power supply + multimeter integration
- 150W / 300W output power
- High resolution: 10mV / 1mA
- List waveform editing output (10 groups)
- 4 1/2 digits multimeter (Voltage, Current, Resistance, etc.)
- USB communication interface, support SCPI
- Output voltage and current curve monitoring function
- Over voltage / over current protection
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
Engineered for versatility, the SPM series allows for simultaneous power delivery and precise measurement. It features list waveform editing for automated testing and a 2.8-inch color LCD for clear data visualization. The integrated multimeter supports DCV, ACV, DCA, ACA, Resistance, Capacitance, and Diode tests.
Specifications
| Power Supply | Max Power | 150W / 300W |
| Multimeter | Display Digits | 4 1/2 digits |
| Interface | Communication | USB Device, USB Host |
| Display | Size | 2.8 inch color LCD |
| Physical | Dimensions | 82 x 142 x 226 mm |
