OWON SmartDS Series Digital Oscilloscope
Benchtop Oscilloscopes

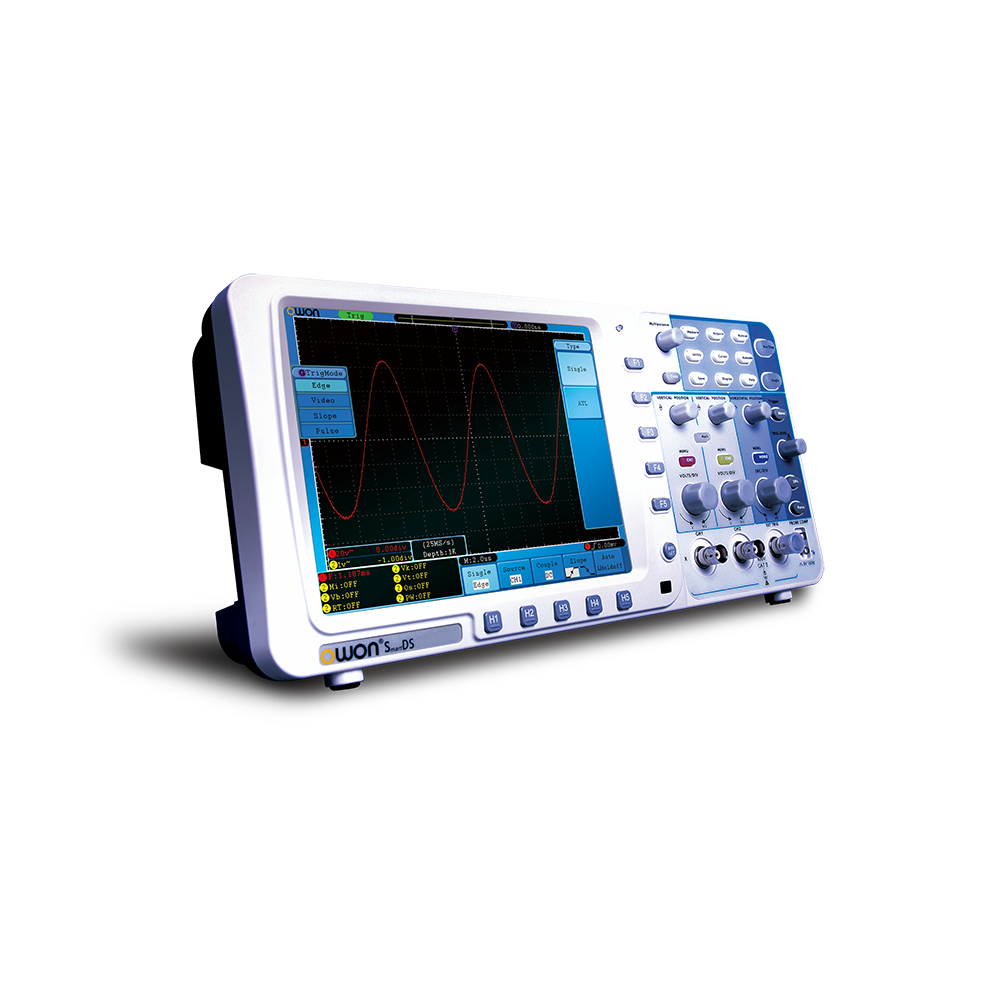

OWON SmartDS Series Digital Oscilloscope

  • Bandwidth range from 100MHz to 300MHz
  • Sampling rate up to 3.2 GS/s
  • 10M record length per channel for detailed waveform capture
  • Multi-function features: Auto-scale, Pass/Fail testing, current measurement
  • Waveform record and playback with up to 1000 frames
  • LAN remote control support
  • Supports SCPI and LabVIEW for automation
  • Portable design with optional battery for field testing
  • 8-inch 800×600 high-resolution LCD display
  • SVGA output for external display (monitor/projector)
  • Supports floating measurement with battery mode
  • Multiple interfaces: USB Host, USB Device, LAN, VGA (optional), RS232 (optional)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The SmartDS Series combines high sampling rates and deep memory to deliver accurate waveform analysis. Its auto-scale feature simplifies operation by automatically adjusting settings based on input signals. With waveform recording, pass/fail testing, and optional battery operation, it is well-suited for both laboratory and field environments. The SVGA output enhances usability for presentations and monitoring.

Specifications
OscilloscopeModelsSDS7102, SDS8102, SDS7202, SDS8202, SDS8302, SDS9302
Bandwidth100MHz / 200MHz / 300MHz
Sample Rate1 GS/s / 2 GS/s / 2.5 GS/s / 3.2 GS/s
Channels2 + 1 External
Record Length10M per channel
Horizontal Scale1ns/div – 100s/div (1-2-5 step)
DisplayScreen8-inch LCD, 800 × 600 resolution
PerformanceVertical Resolution8-bit ADC
Vertical Sensitivity2mV/div – 10V/div
TriggerTrigger TypesEdge, Pulse, Video, Slope, Alternate
AdvancedAuto-ScaleAvailable
Pass/Fail FunctionAvailable
Waveform RecordingUp to 1000 frames (record & playback)
InterfacesConnectivityUSB Host, USB Device, LAN, VGA (optional), RS232 (optional), Pass/Fail output
PowerBattery (Optional)7.4V, 8000mAh
PhysicalDimensions340 × 155 × 70 mm
WeightApprox. 1.8 kg
