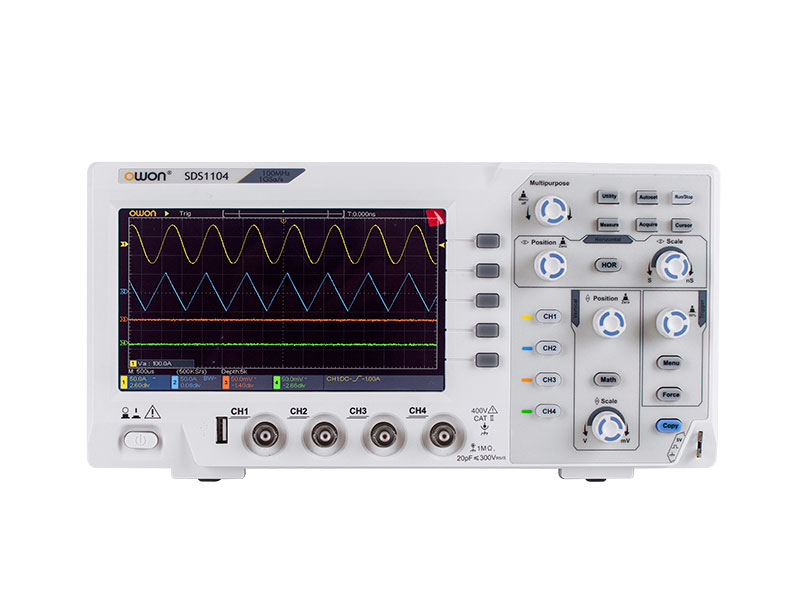

OWON SDS1104 4CH Economical Digital Oscilloscope
- 4-channel oscilloscope with 100MHz bandwidth
- Real-time sampling rate up to 1 GS/s
- Ultra-thin and lightweight design
- 7-inch 800×480 high-resolution LCD display
- Supports SCPI and LabVIEW for remote control
- Basic trigger modes: Edge and Video
- Built-in frequency counter
- Essential waveform math functions including FFT
- Compact and energy-efficient (<15W power consumption)
- USB Host and USB Device connectivity
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The SDS1104 offers a balance between affordability and functionality with its 100MHz bandwidth and 1GS/s sampling rate. Its compact and lightweight design makes it ideal for portable use or small workspaces. Equipped with essential measurement tools, waveform math, and frequency counter, it is a practical choice for entry-level engineers and educational institutions.
Specifications
| Oscilloscope | Model | SDS1104 |
| Bandwidth | 100MHz | |
| Sample Rate | 1 GS/s | |
| Channels | 4 | |
| Record Length | 20K | |
| Horizontal Scale | 2ns/div – 1000s/div (1-2-5 step) | |
| Display | Screen | 7-inch LCD, 800 × 480 resolution |
| Performance | Vertical Sensitivity | 5mV/div – 5V/div |
| Probe Attenuation | 1X, 10X, 100X, 1000X | |
| Trigger | Trigger Types | Edge, Video |
| Trigger Modes | Auto, Normal, Single | |
| Measurement | Cursor Measurement | ΔV, ΔT, Auto-cursors |
| Automatic Measurements | Vpp, Vrms, Frequency, Period, Rise/Fall Time, Duty Cycle, Phase, Pulse Count, Area and more | |
| Math Functions | Operations | +, −, ×, ÷, Invert, FFT |
| Storage | Waveform Storage | 16 waveforms |
| Interfaces | Connectivity | USB Host, USB Device |
| Advanced | Frequency Counter | Available |
| Power | Supply | 100V – 240V AC, 50/60Hz, CAT II |
| Consumption | <15W | |
| Physical | Dimensions | 301 × 152 × 70 mm |
| Weight | Approx. 1.1 kg |
