Benchtop Oscilloscopes

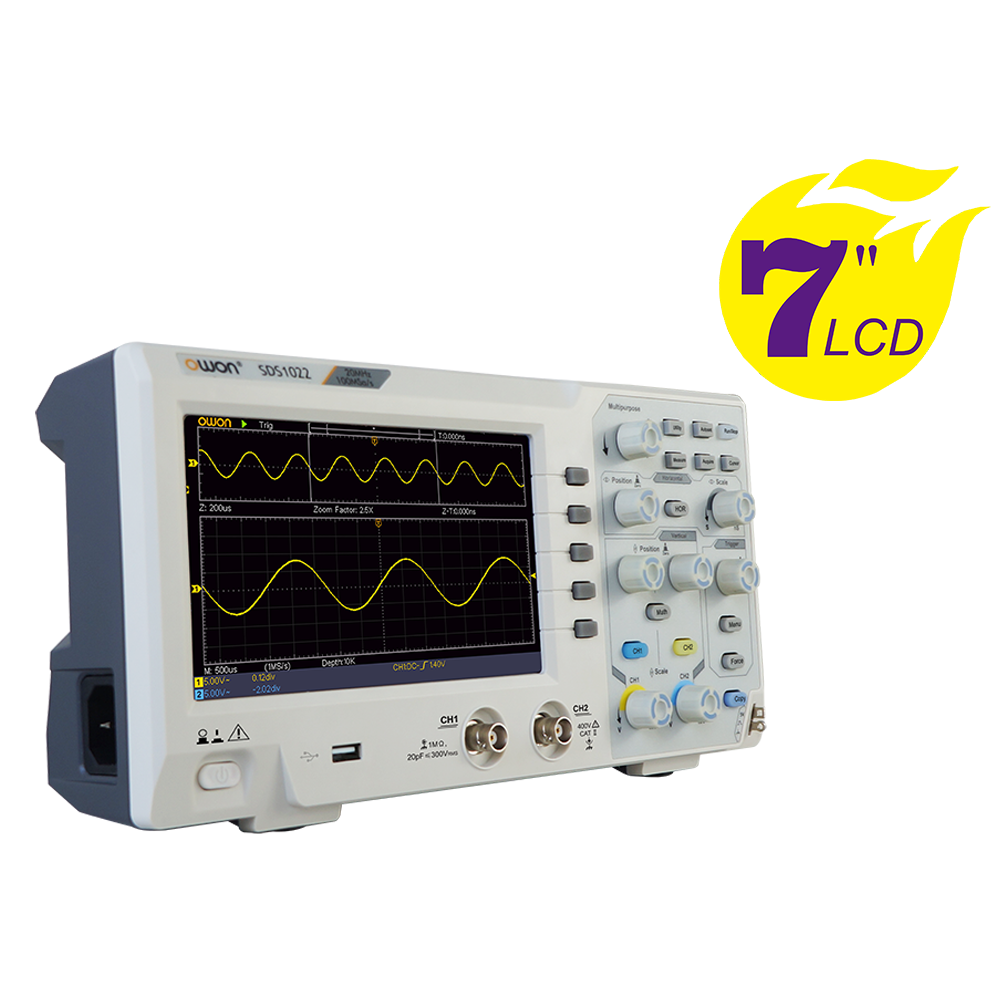

OWON SDS1000 2CH Series Super Economical Digital Oscilloscope
- 2-channel oscilloscope with bandwidth range from 20MHz to 200MHz
- Sampling rate from 100 MS/s up to 1 GS/s
- Ultra-thin and lightweight design
- 7-inch 800×480 high-resolution LCD display
- User-friendly interface for easy operation
- Supports SCPI and LabVIEW for remote control
- Window zoom function for detailed waveform analysis
- One-click snapshot with up to 30 automatic measurements
- Basic trigger modes: Edge and Video
- Waveform math functions including FFT
- Compact size ideal for education and basic lab use
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The SDS1000 Series provides essential oscilloscope functionality with a simple interface and compact design. It offers bandwidth options up to 200MHz and sampling rates up to 1GS/s, making it suitable for general-purpose testing. Its lightweight build and intuitive UI make it an excellent choice for learning environments and entry-level engineering applications.
Specifications
| Oscilloscope | Models | SDS1022, SDS1052, SDS1102, SDS1202 |
| Bandwidth | 20MHz / 50MHz / 100MHz / 200MHz | |
| Sample Rate | 100 MS/s / 500 MS/s / 1 GS/s | |
| Channels | 2 | |
| Horizontal Scale | 2ns/div – 1000s/div (1-2-5 step) | |
| Display | Screen | 7-inch LCD, 800 × 480 resolution |
| Performance | Vertical Resolution | 8-bit ADC |
| Vertical Sensitivity | 5mV/div – 5V/div | |
| Trigger | Trigger Types | Edge, Video |
| Trigger Modes | Auto, Normal, Single | |
| Math Functions | Operations | +, −, ×, ÷, Invert, FFT |
| Interfaces | Connectivity | USB (model dependent) |
| Power | Fuse | 2A, T class, 250V |
| Physical | Dimensions | 301 × 152 × 70 mm |
| Weight | Approx. 1.1 kg |
