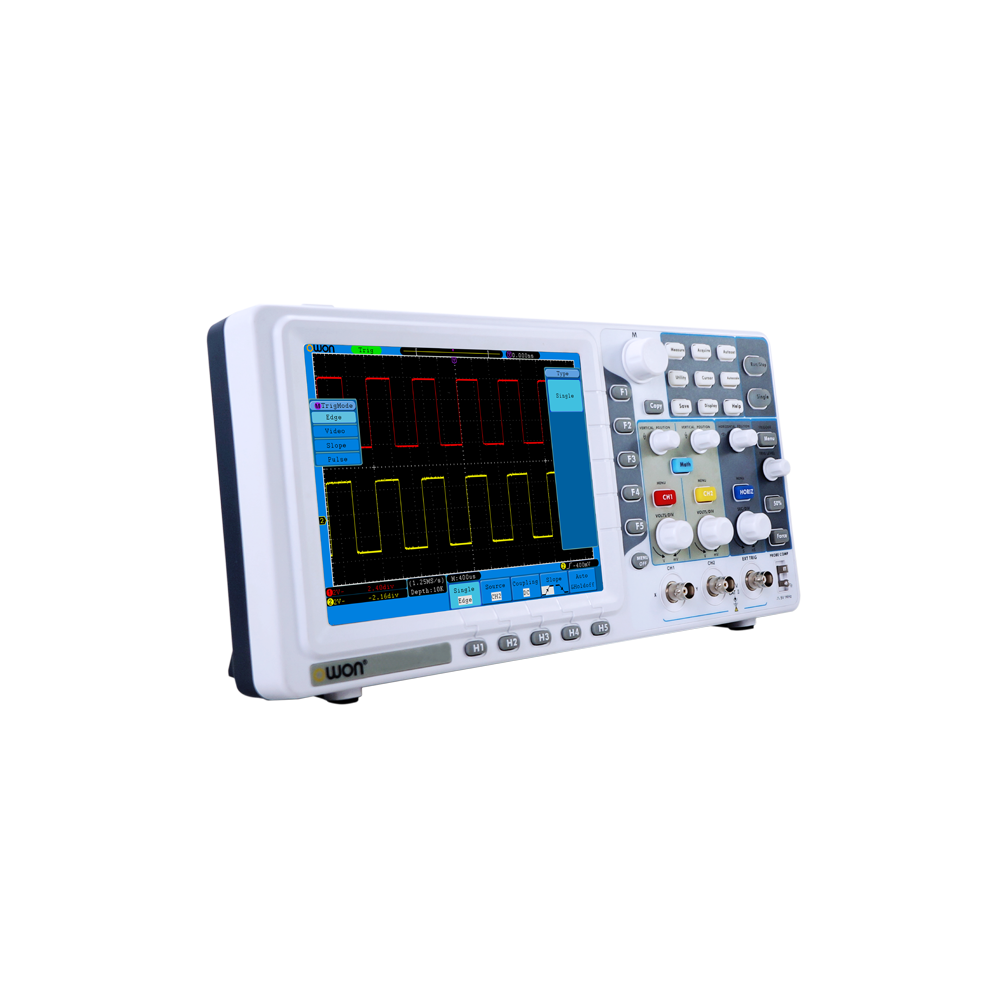

OWON SDS-E Series Digital Oscilloscope
Benchtop Oscilloscopes

OWON SDS-E Series Digital Oscilloscope

  • Bandwidth range from 30MHz to 125MHz
  • Sampling rate from 500 MS/s to 1 GS/s
  • Ultra-thin and lightweight design
  • 8-inch 800×600 high-resolution TFT LCD display
  • Pass/Fail function for automated signal monitoring
  • Auto-scale function for automatic signal adjustment
  • Waveform record and playback with up to 1000 frames
  • Supports SCPI and LabVIEW for remote control
  • Digital filtering and current measurement (excluding SDS5032E and SDS5052E)
  • Multiple interfaces: USB Host, USB Device, LAN, VGA (optional)
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The SDS-E Series provides essential oscilloscope functionality with enhanced usability features such as auto-scale and pass/fail testing. Its waveform recording capability allows users to capture and replay signals for deeper analysis. With an 8-inch display and compact design, it is suitable for both lab and production environments. The digital filtering and current measurement functions add versatility for more advanced applications.

Specifications
OscilloscopeModelsSDS5032E, SDS5052E, SDS6062E, SDS7072E, SDS7102E, SDS7122E
Bandwidth30MHz / 50MHz / 60MHz / 70MHz / 100MHz / 125MHz
Sample Rate500 MS/s / 1 GS/s
Channels2 + 1 External
Record Length10K / 1M
Horizontal Scale2ns/div – 100s/div (1-2-5 step)
DisplayScreen8-inch LCD, 800 × 600 resolution
PerformanceVertical Resolution8-bit ADC
Vertical Sensitivity2mV/div – 10V/div (model dependent)
TriggerTrigger TypesEdge, Pulse, Video, Slope, Alternate
Trigger ModesAuto, Normal, Single
Math FunctionsOperations+, −, ×, ÷, Invert, FFT
AdvancedPass/FailAvailable
Auto-ScaleAvailable
Waveform RecordingUp to 1000 frames (record & playback)
InterfacesConnectivityUSB Host, USB Device, LAN, VGA (optional), Pass/Fail output
PowerBatteryNot supported
PhysicalDimensions348 × 170 × 78 mm
WeightApprox. 1.5 kg
