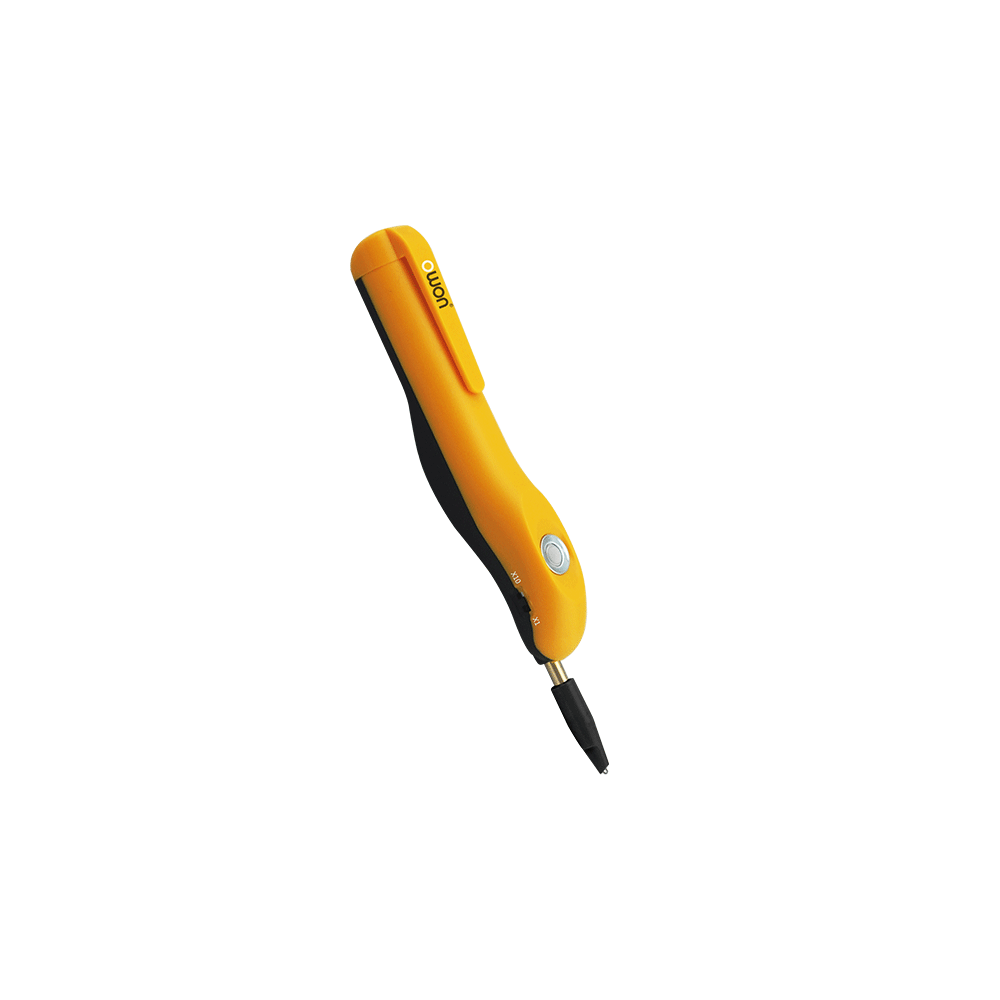

OWON Pen-type PC Oscilloscope (RDS Series)
- Pen-type ultra-compact PC oscilloscope (pocket size)
- Bandwidth up to 25MHz
- Sampling rate up to 100 MSa/s
- FFT function for frequency analysis
- Supports micro signal measurement down to 5mV/div
- Trackball control for easy navigation and adjustments
- Multiple trigger modes: Edge, Pulse, Slope
- Waveform recording and replay supported
- USB powered with optional USB isolation (up to 1000V)
- Floating measurement capability (isolated model)
- Ergonomic design for comfortable long-time use
- Ideal for on-site and field testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The RDS Series combines portability and functionality in a pen-style design, making it easy to carry and use in tight spaces. With USB-powered operation and optional isolation, it ensures safe and efficient measurements. The integrated trackball allows intuitive control, while features like FFT, waveform recording, and multi-trigger options provide essential analysis capabilities.
Specifications
| Oscilloscope | Models | RDS1021, RDS1021I |
| Bandwidth | 25MHz | |
| Sample Rate | 100 MSa/s | |
| Record Length | 5K | |
| Channels | 1 | |
| Horizontal Scale | 5ns/div – 100s/div (1-2-5 step) | |
| Performance | Vertical Resolution | 8-bit ADC |
| Vertical Sensitivity | 5mV/div – 5V/div | |
| Rise Time | ≤14ns | |
| Max Input Voltage | 50V (RDS1021), 400V (RDS1021I isolated) | |
| Trigger | Trigger Types | Edge, Pulse, Slope |
| Trigger Modes | Auto, Normal, Single | |
| Acquisition | Modes | Sample, Peak Detect, Average |
| Math Functions | Operations | FFT |
| Interfaces | Connectivity | USB 2.0 (Isolation supported in RDS1021I) |
| Advanced | Isolation | Up to 1000V (RDS1021I) |
| Power | Supply | USB powered |
| Physical | Dimensions | 150 × 20 × 18 mm |
| Weight | Approx. 0.27 kg |
