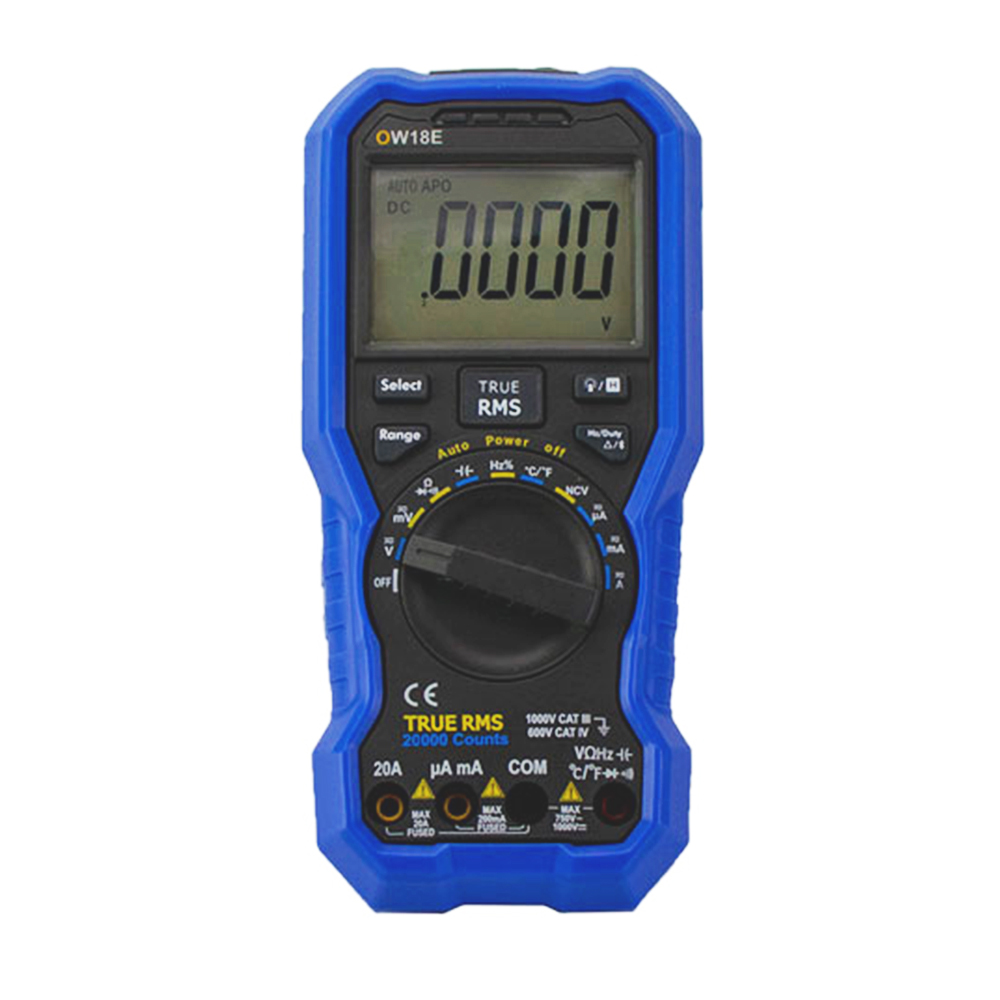

OWON OW18D/E Handheld Digital Multimeter
- 4½-digit resolution (20,000 counts)
- True RMS AC voltage and current measurement
- Data logger + multimeter + thermometer (OW18E)
- BLE 4.0 wireless transmission (OW18E)
- Built-in offline recording (OW18E)
- Chart and diagram mode for trend analysis (OW18E)
- NCV (non-contact voltage detection)
- Flashlight for low-light environments
- Cross-platform support: Android, iOS, Windows (OW18E)
- Portable and rugged handheld design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
This handheld multimeter combines traditional measurement capabilities with modern features like Bluetooth connectivity and data logging. The OW18E variant enhances functionality with wireless data transmission, trend visualization, and temperature measurement, making it ideal for both field diagnostics and smart monitoring applications.
Specifications
| Display | 20,000 counts | |
| Sample Rate | 3 readings/sec | |
| DC Voltage | Range | 20mV – 1000V |
| Accuracy | Up to ±0.05% | |
| AC Voltage | Range | 20mV – 750V |
| DC Current | Range | 200µA – 20A |
| AC Current | Range | 200µA – 20A |
| Resistance | Range | 200Ω – 200MΩ |
| Capacitance | Range | 2nF – 20mF |
| Frequency | Range | 20Hz – 20MHz |
| Duty Cycle | Range | 0.1% – 99.9% |
| Temperature | Range | -50°C to 400°C (OW18E) |
| Special | NCV Detection | Supported |
| Bluetooth | BLE 4.0 (OW18E only) | |
| Display | Type | LCD display |
