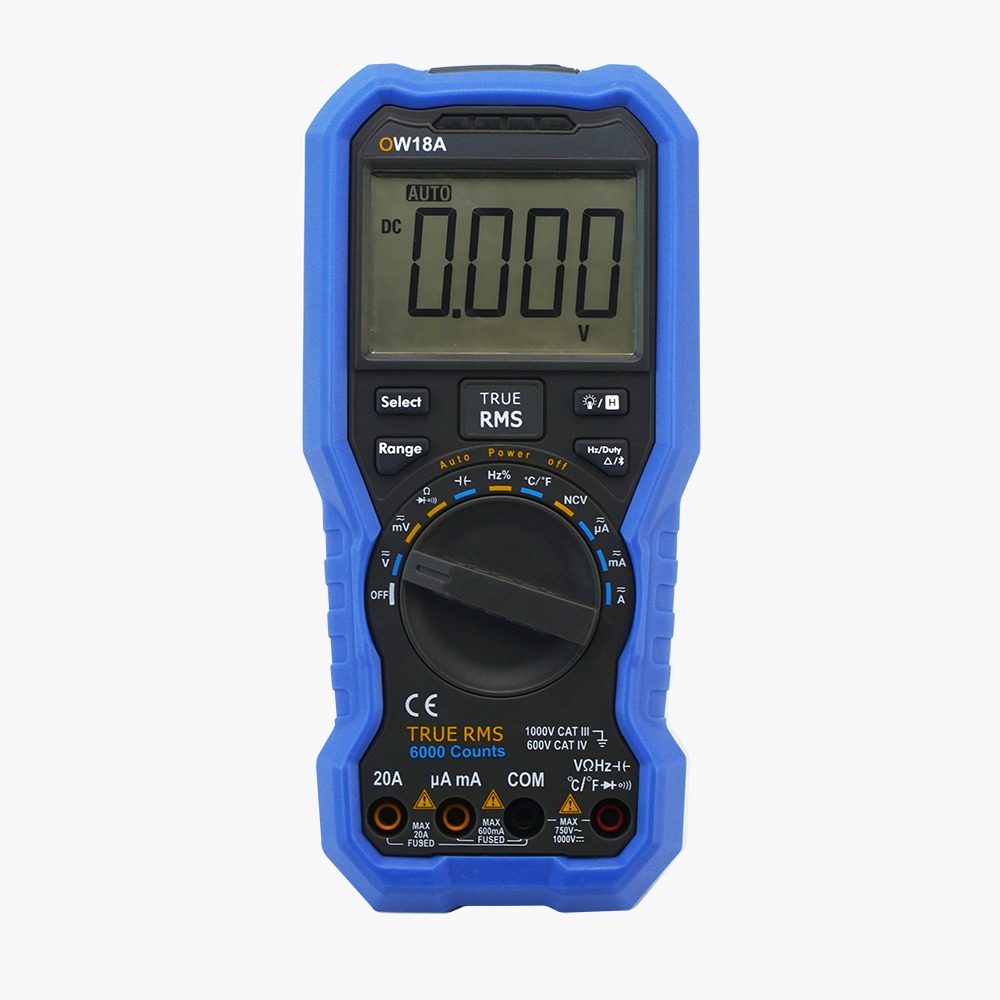

OWON OW18 Series Smart Handheld Digital Multimeter
- 3⅚-digit resolution (5999 counts)
- True RMS AC voltage and current measurement
- NCV (non-contact voltage detection)
- Data logger + multimeter + thermometer (OW18B)
- BLE 4.0 wireless connectivity (OW18B)
- Built-in offline recording (OW18B)
- Chart and diagram mode for trend analysis (OW18B)
- Flashlight for low-light environments
- Cross-platform support: Android and iOS (OW18B)
- Auto-ranging with manual override
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OW18 Series combines essential multimeter functionality with modern smart features such as Bluetooth connectivity and data logging. The OW18B variant enables wireless monitoring, offline recording, and graphical trend analysis, making it ideal for technicians and engineers who require flexibility and real-time insights during field work.
Specifications
| Models | OW18A, OW18B | |
| Display | 5999 counts | |
| Sample Rate | 3 readings/sec | |
| DC Voltage | Range | 60mV – 1000V |
| Accuracy | Up to ±0.5% | |
| AC Voltage | Range | 600mV – 750V |
| DC Current | Range | 600µA – 20A |
| AC Current | Range | 600µA – 20A |
| Resistance | Range | 600Ω – 60MΩ |
| Capacitance | Range | 60nF – 60mF |
| Frequency | Range | 9.999Hz – 9.999MHz |
| Duty Cycle | Range | 0.1% – 99.9% |
| Temperature | Range | -50°C to 400°C (OW18B) |
| Special | NCV Detection | Supported |
| Bluetooth | BLE 4.0 (OW18B only) | |
| Safety | Compliance | CAT IV 600V, CAT III 1000V |
| Display | Type | LCD with backlight |
| Physical | Dimensions | 190 × 90 × 56 mm |
| Weight | Approx. 0.30 kg |
