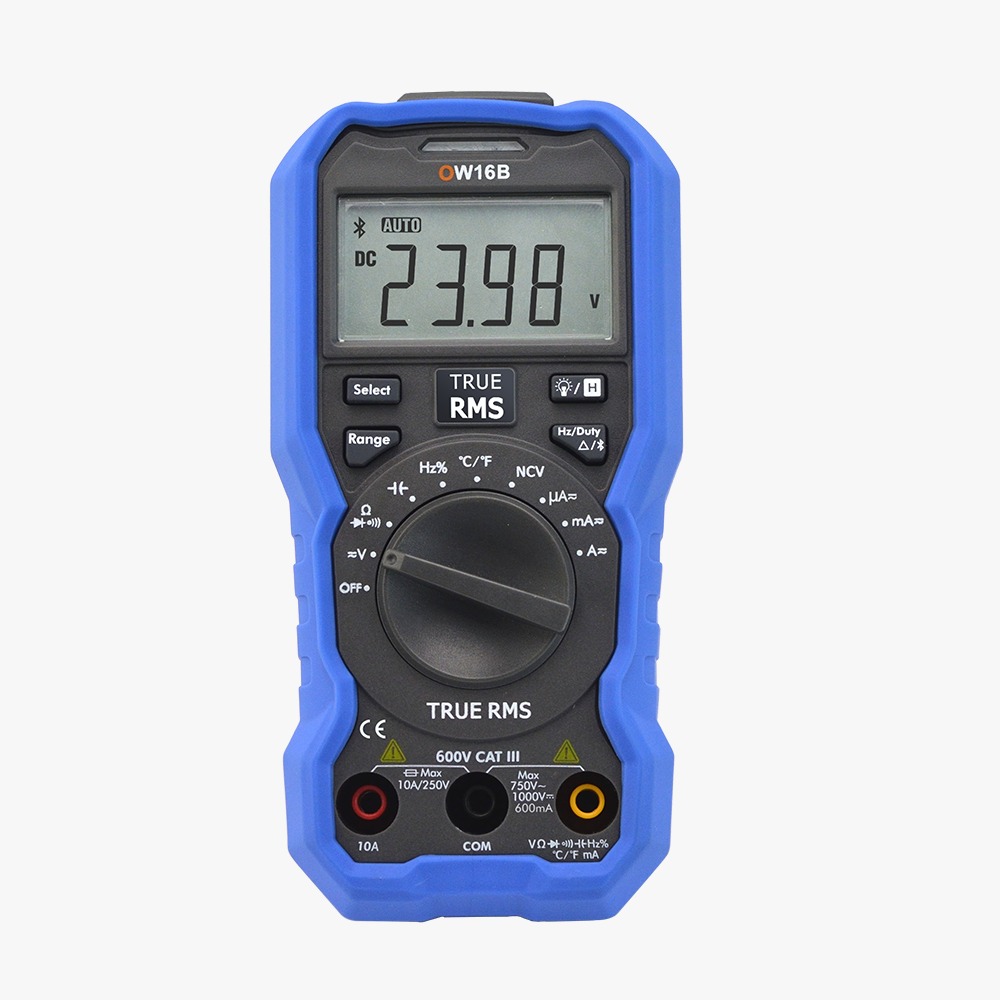

OWON OW16 Handheld Digital Multimeter
Handheld Multimeters

OWON OW16 Handheld Digital Multimeter

  • 3⅚-digit resolution (5999 counts)
  • True RMS AC voltage and current measurement
  • NCV (non-contact voltage detection)
  • Data logger + multimeter + thermometer (OW16B)
  • BLE 4.0 wireless connectivity (OW16B)
  • Offline data recording and trend analysis (OW16B)
  • Chart and diagram mode for signal visualization (OW16B)
  • Cross-platform support: Android and iOS (OW16B)
  • Auto-ranging and manual range selection
  • Compact and portable handheld design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OW16 series offers essential measurement capabilities with added smart features in the OW16B variant, including Bluetooth connectivity and data logging. With True RMS measurement and NCV detection, it is ideal for electricians, technicians, and hobbyists who need reliable and portable diagnostic tools.

Specifications
ModelsOW16A, OW16B
Display5999 counts
Sample Rate3 readings/sec
DC VoltageRange6V – 1000V
AccuracyUp to ±0.5%
AC VoltageRange6V – 750V
DC CurrentRange600µA – 10A
AC CurrentRange600µA – 10A
ResistanceRange600Ω – 60MΩ
CapacitanceRange60nF – 60mF
FrequencyRange9.999Hz – 9.999MHz
Duty CycleRange0.1% – 99.9%
TemperatureRange-50°C to 400°C (OW16B)
SpecialNCV DetectionSupported
BluetoothBLE 4.0 (OW16B only)
DisplayTypeLCD with backlight
PowerBattery2 × AA (3V)
