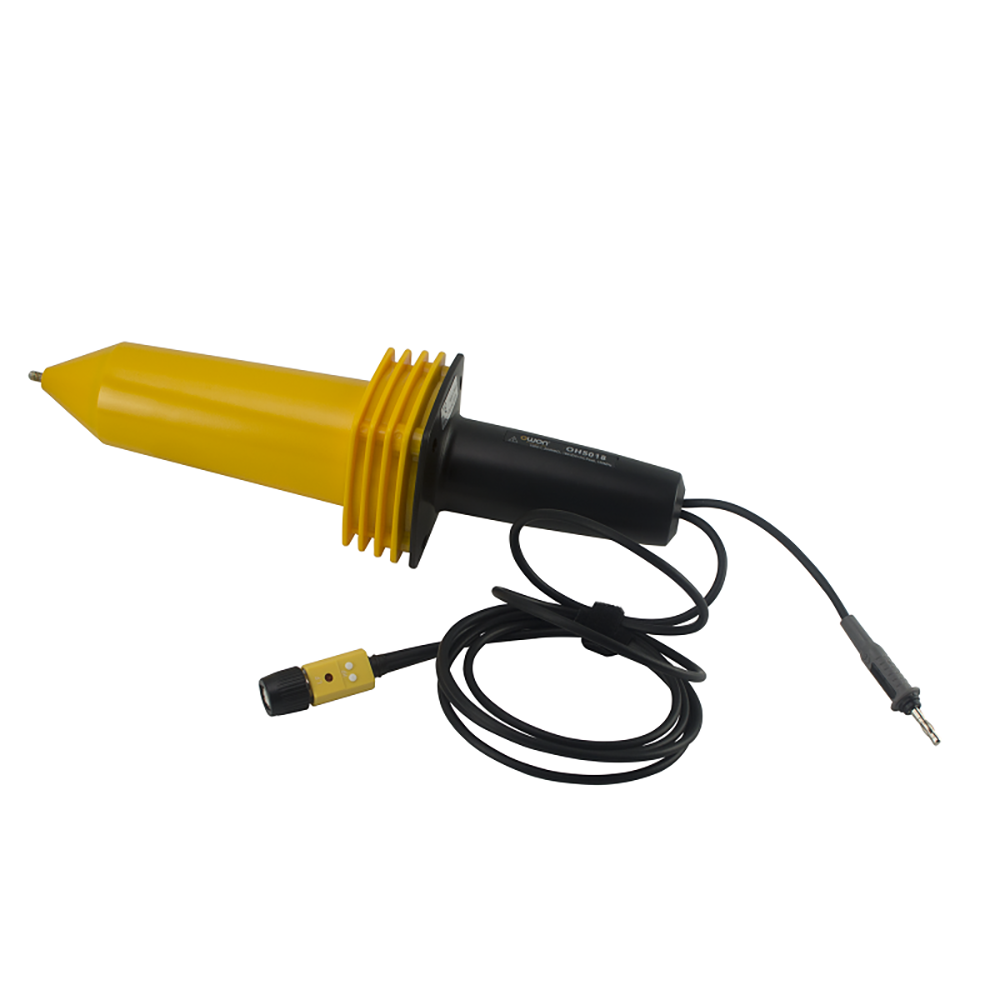

OWON OH Series Passive High Voltage Probe
- High voltage measurement capability up to 20kV peak (pulse)
- Supports DC up to 10kV and AC up to 7kV (RMS)
- High input impedance of 100MΩ for minimal circuit loading
- Bandwidth up to 50MHz for accurate waveform capture
- Low input capacitance (3.0pF) for improved signal fidelity
- Durable pure copper probe construction
- Standard BNC connector for wide oscilloscope compatibility
- Suitable for power electronics and high-voltage testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OH Series high voltage probes provide reliable measurement for high-voltage applications such as power supplies, industrial equipment, and electrical testing. With high input impedance and low capacitance, they minimize signal distortion while maintaining safety. The robust construction and standard BNC interface make them compatible with a wide range of oscilloscopes.
Specifications
| Models | OH5007, OH5018, OH5040 | |
| Type | Passive High Voltage Probe | |
| Voltage | DC Working Voltage | Up to 10kV |
| AC Working Voltage | Up to 7kV RMS | |
| Peak Voltage | Up to 20kV (pulse) | |
| Performance | Bandwidth | 50MHz |
| Input Impedance | 100MΩ | |
| Input Capacitance | 3.0pF | |
| Connectivity | Connector | BNC |
| Build | Material | Pure copper probe tip for durability |
