Programmable DC Series

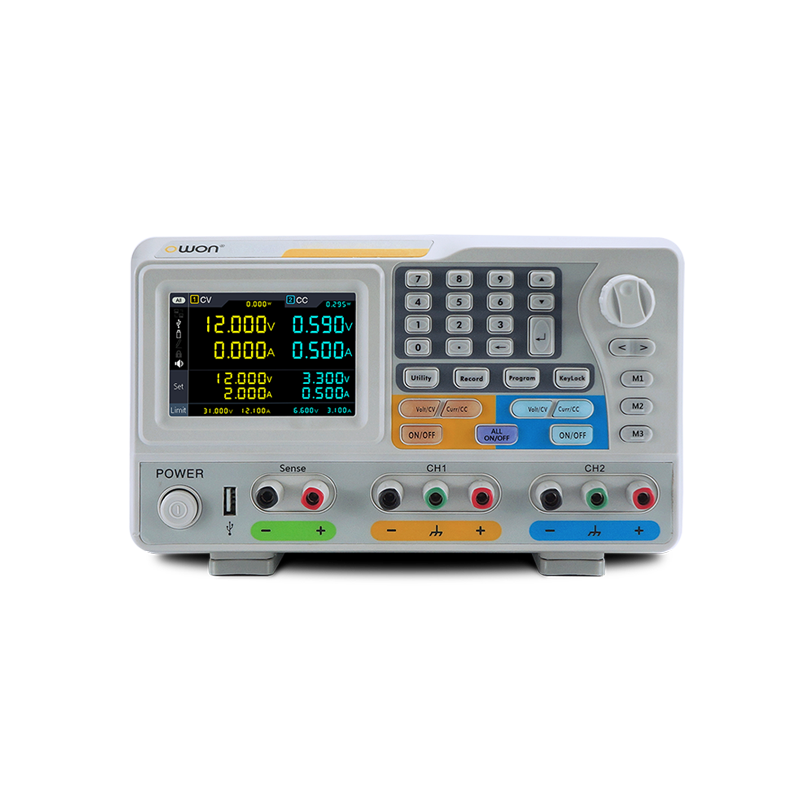

OWON ODP Series 3-CH Programmable DC Power Supply
- Three independent controllable channels
- Output resolution: 1mV / 1mA
- Low ripples / low noise
- Up to 100 group timers
- Multi-working mode: individual, parallel, and series
- Data-logging function: record voltage and current data in charts
- 4 inch high resolution (480 x 320 pixels) LCD
- Multi-interface: USB, RS232, and LAN
- SCPI and LabVIEW supported
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
These units can function as three separate power supplies or be combined in series/parallel for higher voltage or current. The built-in data logging function is a standout feature, allowing engineers to monitor long-term power performance directly on the 4-inch display. Support for LAN and SCPI ensures easy integration into automated test systems.
Specifications
| Output | Max Power | Up to 378W |
| Channels | 3 (Independent) | |
| Resolution | Setting | 1mV / 1mA |
| Interface | Communication | USB, RS232, LAN |
| Logging | Capacity | 10K groups |
