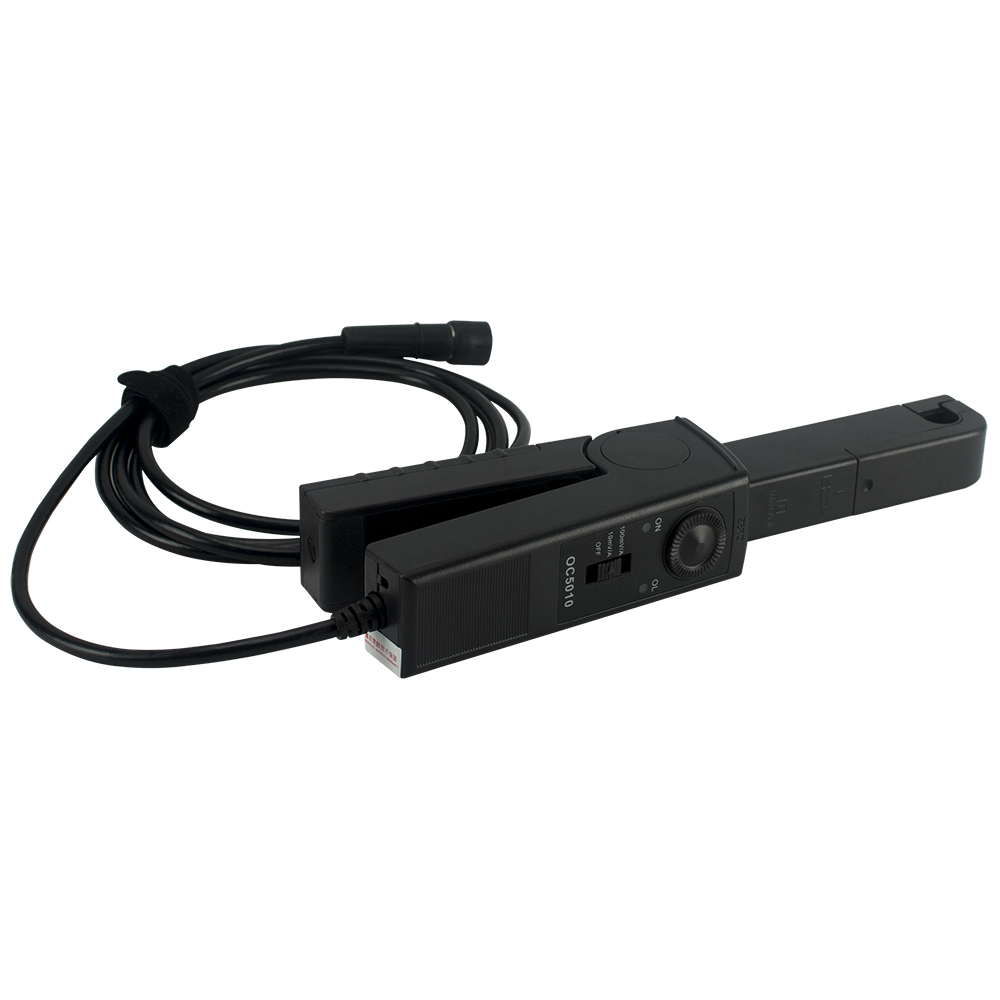

OWON OC5010 AC/DC Current Probe
- Wide current measurement range: 0.05A to 100A
- Supports both AC and DC current measurement
- Dual conversion ratios: 100mA/V and 10mA/V
- Bandwidth up to 100kHz (DC–100kHz)
- Compact clamp design with 11.8mm jaw opening
- Zero adjustment knob for demagnetization and offset correction
- BNC connector for compatibility with most oscilloscopes
- High sensitivity for low-current measurements
- Lightweight and portable design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OC5010 current probe is designed for accurate non-intrusive current measurement across a wide range of applications. With dual sensitivity ranges and a built-in zero adjustment feature, it ensures precise readings even for low currents. Its compact size and standard BNC interface make it easy to use with various oscilloscopes, making it ideal for electronics troubleshooting, power analysis, and educational use.
Specifications
| Measurement Type | AC/DC Current | |
| Range | 0.05A – 100A | |
| Bandwidth | DC – 100kHz | |
| Jaw Size | 11.8mm (max) | |
| Performance | Conversion Ratio | 100mA/V | 10mA/V |
| Control | Zero Adjustment | Manual knob (demagnetization and offset correction) |
| Connectivity | Connector | BNC (oscilloscope compatible) |
| Application | Use Cases | Electronics testing, power analysis, circuit diagnostics |
