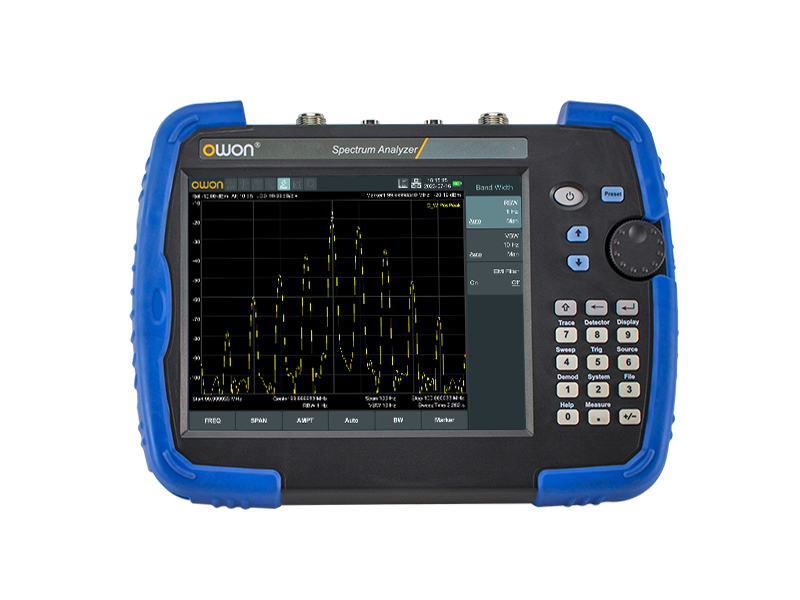

OWON HSA 1016-1036-1075 Handheld Spectrum Analyzer
- Wide frequency range from 9 kHz to 7.5 GHz
- Ultra-low DANL down to -160 dBm
- High phase noise performance (-106 dBc/Hz)
- 1 Hz minimum resolution bandwidth (RBW)
- High amplitude accuracy (<0.7 dB)
- Built-in GPS receiver
- EMI pre-compliance testing support
- Optional tracking generator up to 7.5 GHz
- 8-inch IPS touchscreen display
- Portable with 4–6 hours battery life
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The HSA1000 Series combines portability with laboratory-grade performance. With models covering up to 7.5 GHz, it is ideal for RF engineers, telecom testing, EMI troubleshooting, and wireless system diagnostics. The ultra-low noise floor and high accuracy ensure precise signal analysis even in demanding environments. Built-in GPS and tracking generator options further enhance its usability for field applications.
Specifications
| Models | Variants | HSA1016-TG (1.6GHz), HSA1036-TG (3.6GHz), HSA1075-TG (7.5GHz) |
| Frequency | Range | 9 kHz – 1.6 GHz / 3.6 GHz / 7.5 GHz |
| Span | 0 Hz, 100 Hz to max frequency | |
| Bandwidth | RBW | 1 Hz – 1 MHz |
| VBW | 10 Hz – 3 MHz | |
| Phase Noise | @1GHz offset 10kHz | < -106 dBc/Hz |
| Amplitude | Range | DANL to +20 dBm |
| Accuracy | < 0.7 dB | |
| Noise Level | DANL (Preamp ON) | Up to -160 dBm |
| Tracking Generator | Range | 100 kHz – 7.5 GHz (model dependent) |
| Output Level | -40 dBm to 0 dBm | |
| Display | Screen | 8-inch IPS touchscreen |
| Connectivity | Interfaces | USB Host, USB Device, LAN |
| Battery | Operating Time | 4–6 hours |
| Physical | Dimensions | 265 × 190 × 58 mm |
| Weight | Approx. 2.5 kg |
