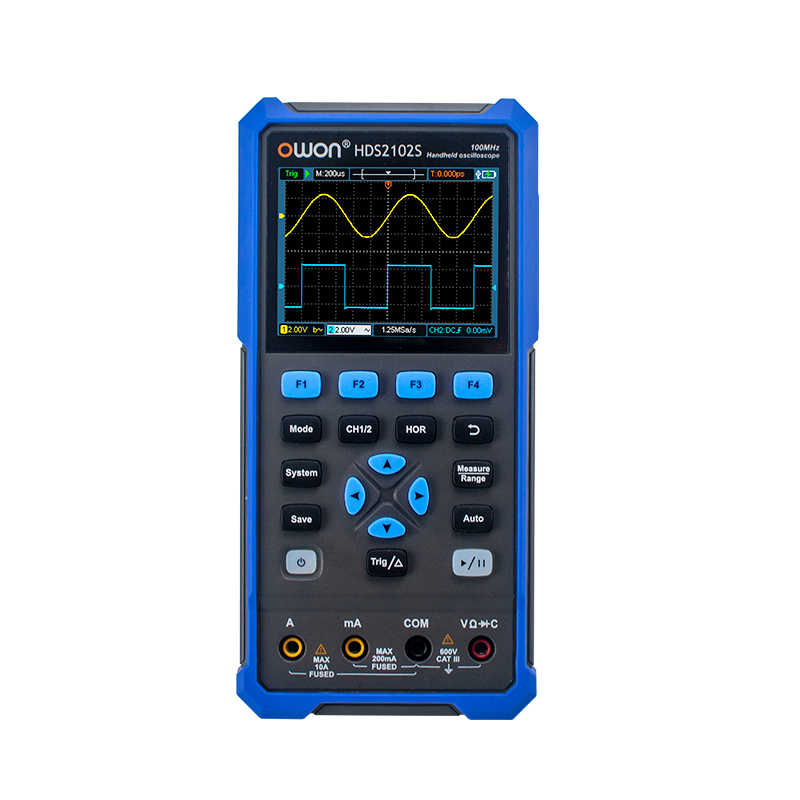

OWON HDS200 Series Handheld Digital Oscilloscope
- 3-in-1 multifunction: Oscilloscope + Multimeter + Waveform Generator (S models)
- Bandwidth options: 40MHz, 70MHz, 100MHz, 200MHz
- Sampling rate up to 1 GSa/s
- Compact handheld design with 3.5-inch high-contrast LCD
- Powered by 18650 lithium battery (3–6 hours operation)
- USB Type-C interface with power bank support
- Supports PC connectivity and software control
- Self-calibration function for accuracy
- SCPI support for automation and development
- Ideal for field diagnostics and portable testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The HDS200 Series integrates oscilloscope, multimeter, and waveform generator functions into a single portable device. With battery operation and USB Type-C support, it enables flexible usage in outdoor and remote environments. Its high sampling rate and multiple bandwidth options allow accurate signal analysis, while the optional waveform generator enhances testing capability.
Specifications
| Oscilloscope | Models | HDS242, HDS272, HDS2102, HDS2202, HDS242S, HDS272S, HDS2102S, HDS2202S |
| Bandwidth | 40MHz / 70MHz / 100MHz / 200MHz | |
| Sample Rate | 250MSa/s / 500MSa/s / 1GSa/s | |
| Channels | 2 (with optional 1CH generator in S models) | |
| Record Length | 8K | |
| Waveform Refresh Rate | 10,000 wfms/s | |
| Horizontal Scale | 2ns/div – 1000s/div (1-2-5 step) | |
| Display | Screen | 3.5-inch color LCD |
| Performance | Vertical Resolution | 8-bit ADC |
| Vertical Sensitivity | 10mV/div – 10V/div | |
| Input Impedance | 1MΩ ±2% || 16pF ±10pF | |
| Max Input Voltage | 400V (DC+AC, Peak-to-Peak) | |
| Trigger | Trigger Types | Edge |
| Trigger Modes | Auto, Normal, Single | |
| Measurement | Automatic Measurements | Frequency, Period, Amplitude, Max, Min, Mean, Peak-to-Peak |
| Cursor Measurement | ΔV, ΔT, ΔT & ΔV | |
| Interfaces | Connectivity | USB Type-C (PC connection, power support) |
| Multimeter | Resolution | 20,000 counts |
| Functions | Voltage, Current, Resistance, Capacitance, Diode, Continuity | |
| Max Voltage | AC 750V / DC 1000V | |
| Max Current | 10A | |
| Waveform Generator (S Models) | Frequency Range | 0.1Hz – 25MHz (Sine), up to 5MHz (others) |
| Sample Rate | 125MSa/s | |
| Resolution | 14-bit | |
| Amplitude | 20mVpp – 5Vpp | |
| Power | Battery | 18650 Lithium Battery (3–6 hours) |
| Additional | Self Calibration | Supported |
