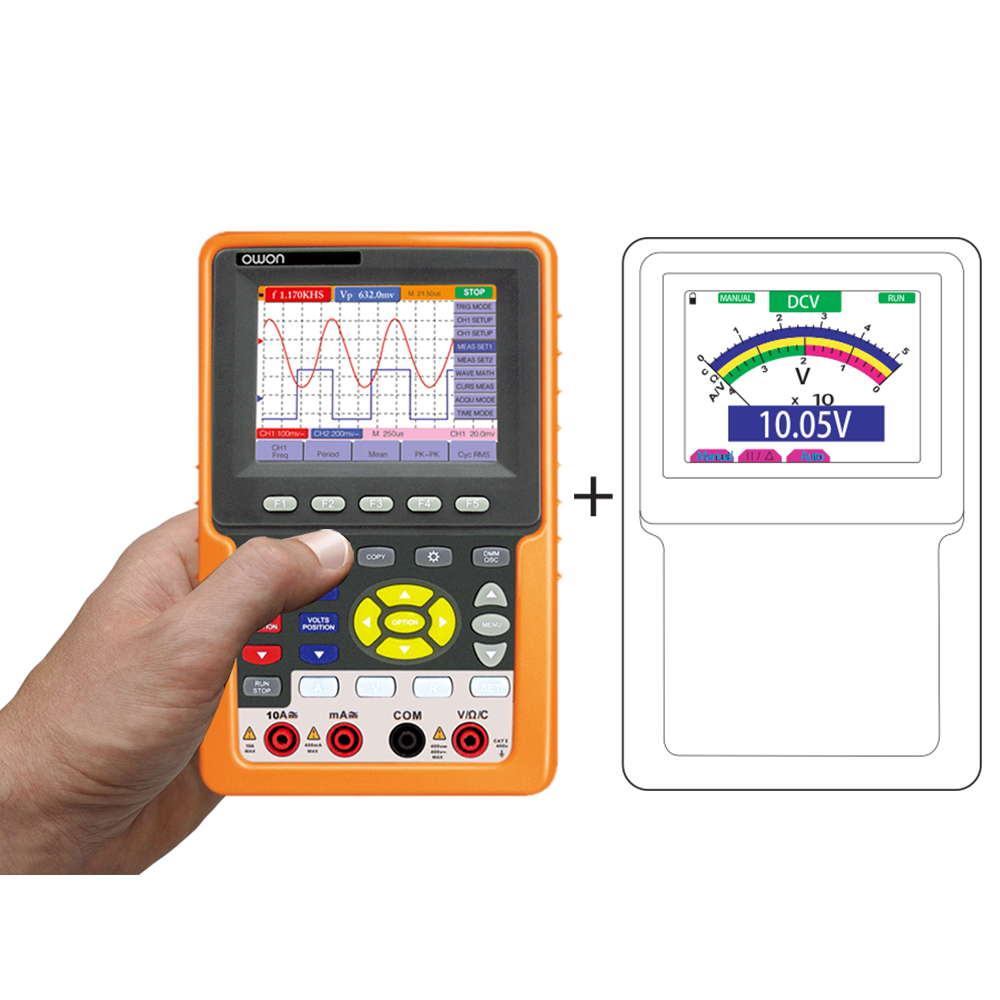

OWON HDS-N Series 2CH Handheld Digital Oscilloscope
Handheld Oscilloscopes

OWON HDS-N Series 2CH Handheld Digital Oscilloscope

  • 2-in-1 multifunction: Oscilloscope + Multimeter
  • Bandwidth range from 20MHz to 200MHz
  • Sampling rate up to 1 GS/s
  • Auto-scale function for quick signal adjustment
  • FFT function for frequency domain analysis
  • Supports 20 groups of automatic measurements
  • Waveform record and restore function
  • USB data transmission support
  • Rechargeable Li-ion battery (up to 6 hours backup)
  • SCPI support for multimeter
  • Alternative trigger function for simultaneous dual-signal testing
  • Compact handheld design with high portability
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The HDS-N Series integrates oscilloscope and multimeter features into a compact handheld device, making it suitable for field service, automotive diagnostics, and maintenance work. With waveform recording, FFT analysis, and auto-scale, it simplifies signal analysis. Its rechargeable battery and lightweight design ensure easy portability and extended usage in remote environments.

Specifications
OscilloscopeModelsHDS1022M-N, HDS2062M-N, HDS3102M-N, HDS4202M-N
Bandwidth20MHz / 60MHz / 100MHz / 200MHz
Sample Rate500 MS/s / 1 GS/s
Channels2
Record Length6K points
Horizontal Scale2ns/div – 100s/div (1-2-5 step)
DisplayScreen3.7-inch TFT LCD, 640 × 480 resolution
PerformanceVertical Resolution8-bit ADC
Vertical Sensitivity5mV/div – 5V/div
TriggerTrigger TypesEdge, Video, Alternate
Acquisition ModesSample, Peak Detect, Average
Math FunctionsOperations+, −, ×, ÷, Invert, FFT
InterfacesConnectivityUSB
PowerBatteryLi-ion 7.4V (up to 6 hours operation)
PhysicalDimensions115 × 180 × 40 mm
WeightApprox. 645 g
MultimeterResolution3¾ digits (4000 count)
FunctionsVoltage, Current, Resistance, Capacitance, Diode, Continuity
Max VoltageDC 1000V / AC 750V
Max Current10A
Input Impedance10MΩ
