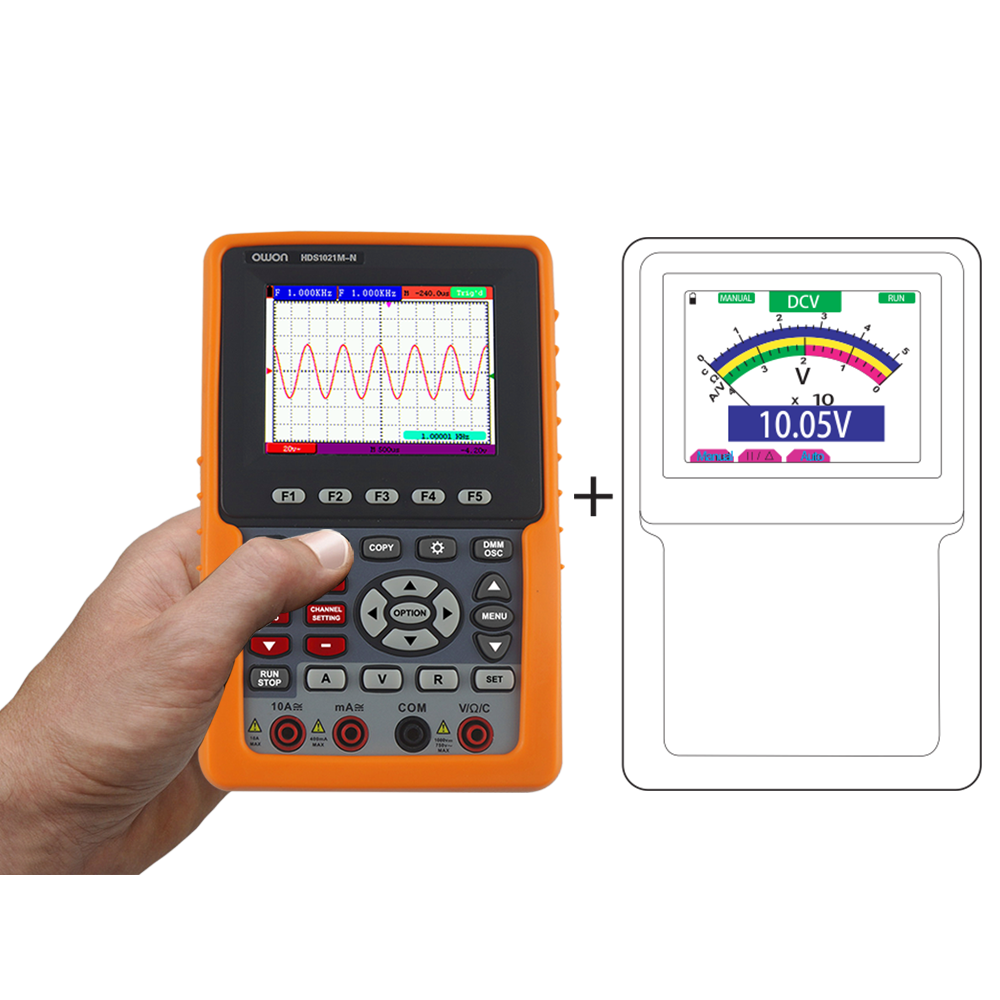

OWON HDS-N Series 1CH Handheld Digital Oscilloscope

  • 2-in-1 multifunction: Oscilloscope + Multimeter
  • Single-channel oscilloscope with bandwidth up to 100MHz
  • Sampling rate up to 1 GS/s
  • Auto-scale function for automatic signal adjustment
  • Supports 20 automatic measurement functions
  • Waveform record and replay capability
  • Adjustable trigger sensitivity for stable signal capture under noise
  • USB data transmission supported
  • SCPI support for multimeter
  • Rechargeable Li-ion battery (up to 6 hours operation)
  • Compact handheld design for portability
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The HDS-N 1CH Series combines oscilloscope and multimeter functions in a compact handheld device. With waveform recording, adjustable trigger sensitivity, and auto-scale functionality, it simplifies signal analysis in field environments. Its long battery life and lightweight design make it suitable for maintenance, troubleshooting, and educational use.

Specifications
OscilloscopeModelsHDS1021M-N, HDS2061M-N, HDS3101M-N
Bandwidth20MHz / 60MHz / 100MHz
Sample Rate500 MS/s / 1 GS/s
Channels1
Record Length24K points
Horizontal Scale5ns/div – 100s/div (1-2-5 step)
DisplayScreen3.7-inch TFT LCD, 640 × 480 resolution
PerformanceVertical Resolution8-bit ADC
Vertical Sensitivity5mV/div – 5V/div
TriggerTrigger TypesEdge, Video (Alternate in higher models)
Trigger ModesAuto, Normal, Single
Trigger Level±6 divisions from center
AcquisitionModesSample, Peak Detect, Average
StorageWaveform Storage4 waveforms
InterfacesConnectivitymini-USB, mini-RS232
PowerBatteryLi-ion 7.4V (up to 6 hours operation)
PhysicalDimensions115 × 180 × 40 mm
WeightApprox. 645 g
MultimeterResolution3¾ digits (4000 count)
FunctionsVoltage, Current, Resistance, Capacitance, Diode, Continuity
Max VoltageDC 1000V / AC 750V
Max Current10A
Input Impedance10MΩ
