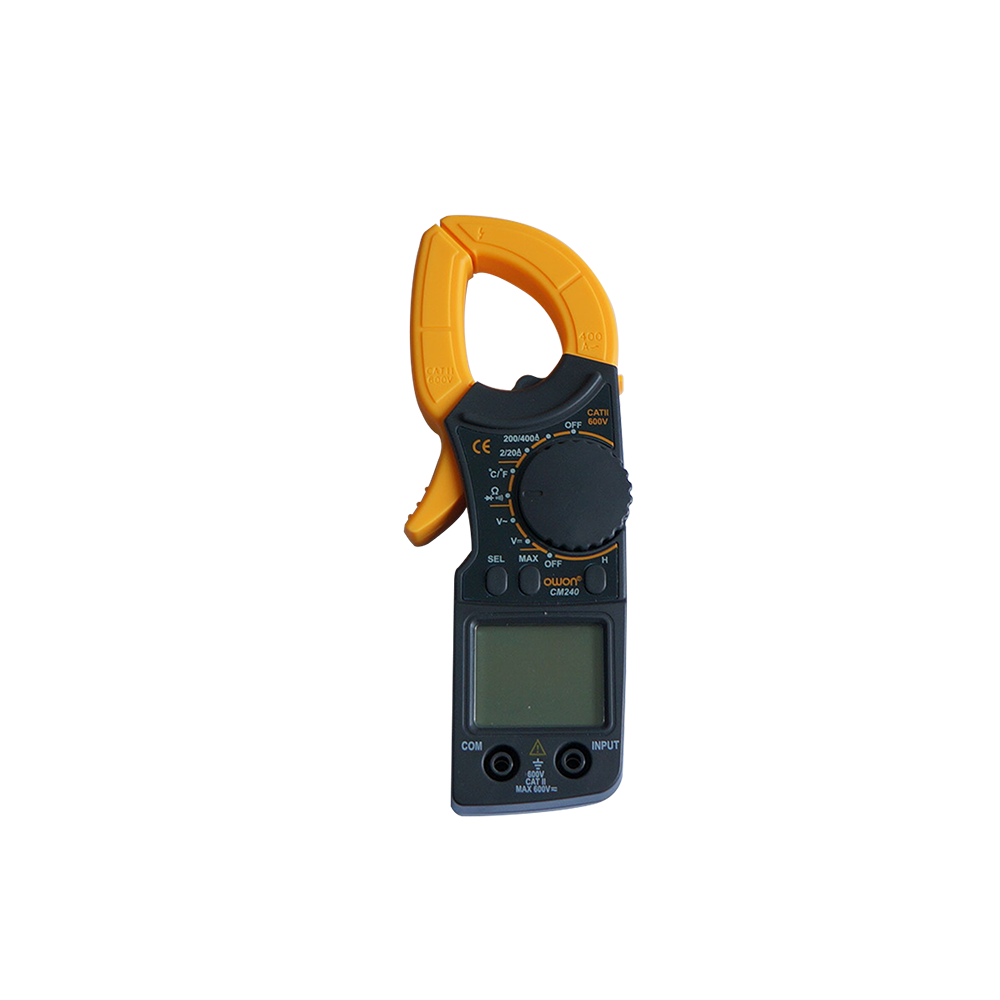

OWON Digital Clamp Meter CM240
Clamp Meters

OWON Digital Clamp Meter CM240

  • Auto and manual range selection
  • 2000-count digital display
  • AC current measurement up to 400A
  • Over-range protection
  • Automatic negative polarity display
  • Data hold and MAX mode
  • Continuity buzzer and diode testing
  • Auto power-off and low battery indication
  • Compact and lightweight design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The OWON CM240 Digital Clamp Meter provides a reliable and easy-to-use solution for measuring AC current, voltage, and resistance. Its clamp design allows non-contact current measurement, improving safety and efficiency. With features like auto-ranging, data hold, and overload protection, it is well-suited for electricians, technicians, and maintenance professionals.

Specifications
Display2000 counts
Jaw Capacity28 mm
AC VoltageRange2V – 600V
DC VoltageRange200mV – 600V
AC CurrentRange2A – 400A
ResistanceRange200Ω – 20MΩ
FunctionsSpecial FeaturesData Hold, MAX Mode, Diode Test, Continuity Buzzer
SafetyRatingCAT III 600V
PowerBattery2 × 1.5V AAA
PhysicalDimensions65 × 177 × 28 mm
WeightApprox. 186 g
