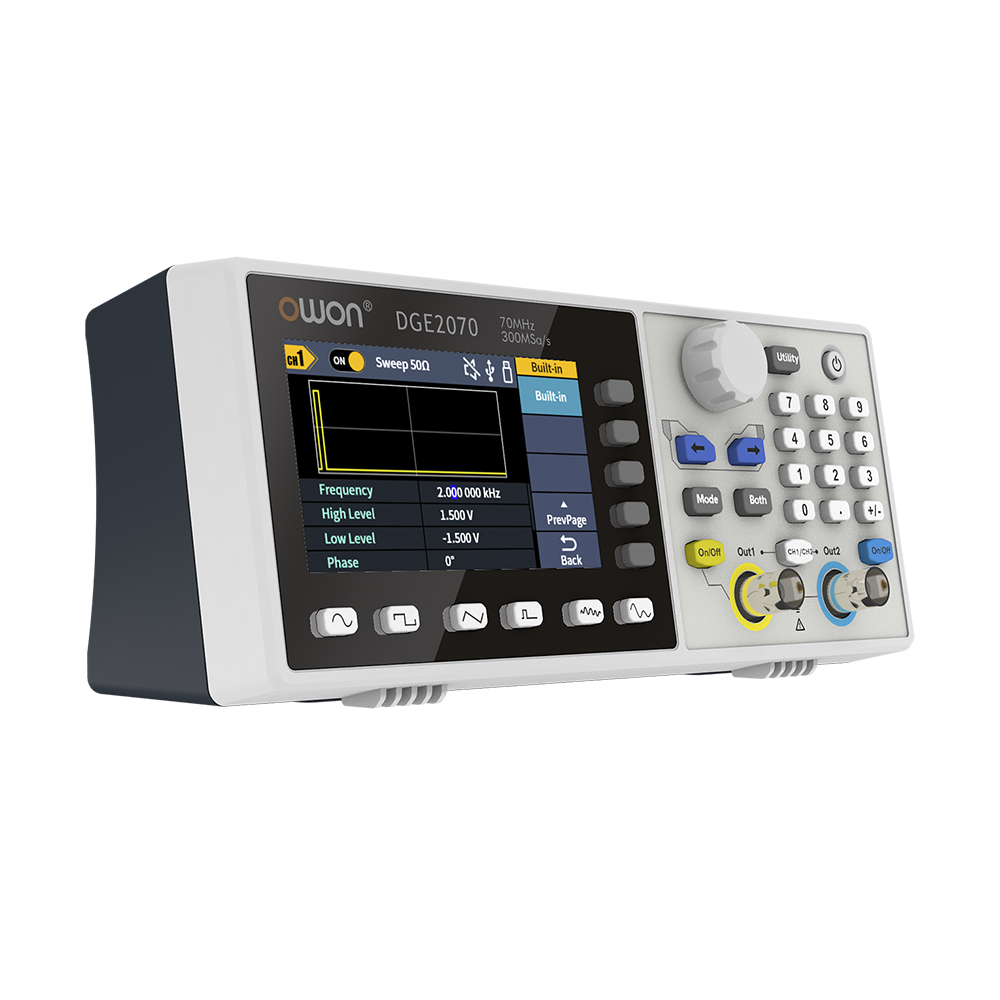

OWON DGE2000 Series Arbitrary Waveform Generator
- Dual-channel arbitrary waveform generator
- Frequency output up to 70MHz
- High sample rate up to 300MSa/s
- 14-bit vertical resolution for accurate waveform generation
- Supports 5 standard waveforms and 150 built-in arbitrary waveforms
- User-defined arbitrary waveform support
- Advanced modulation: AM, FM, PM, FSK, Sweep, Burst
- High frequency resolution up to 1μHz
- SCPI supported for remote control and automation
- 3.6-inch TFT LCD display (480×272)
- Compact and lightweight design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The DGE2000 Series waveform generator offers precise and flexible signal generation with up to 70MHz output frequency and 300MSa/s sample rate. With 14-bit resolution and extensive waveform options, it enables accurate simulation of real-world signals. Advanced modulation capabilities and SCPI support make it suitable for automated testing and development environments.
Specifications
| Models | DGE2035, DGE2070 | |
| Channels | 2 | |
| Performance | Frequency Output | 35MHz / 70MHz |
| Sample Rate | 125MSa/s / 300MSa/s | |
| Vertical Resolution | 14-bit | |
| Waveform Length | 2 – 8K points | |
| Waveforms | Standard | Sine, Square, Pulse, Ramp, Noise |
| Arbitrary | 150 built-in + user-defined waveforms | |
| Frequency | Range | 1μHz – 70MHz (model dependent) |
| Resolution | 1μHz or 7 significant digits | |
| Stability | ±30 ppm (0–40°C) | |
| Amplitude | Output Range | 1mVpp – 20Vpp (≤10MHz), 1mVpp – 4Vpp (≤70MHz) |
| Load Impedance | 50Ω (typical) | |
| Offset | DC Offset Range | ±10Vpk (High-Z), ±5Vpk (50Ω) |
| Resolution | 1mV | |
| Modulation | Types | AM, FM, PM, FSK, Sweep, Burst |
| Interfaces | Connectivity | USB Device |
| Display | Screen | 3.6-inch TFT LCD (480 × 272) |
| Physical | Dimensions | 200 × 68.5 × 74.5 mm |
| Weight | Approx. 0.5 kg |
