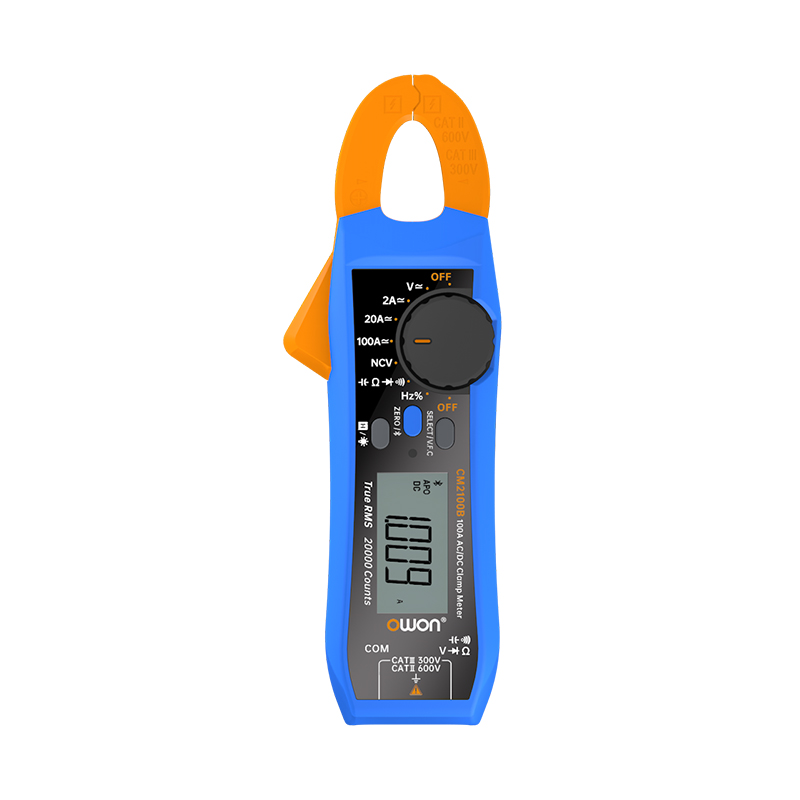

OWON CM2100 Series Smart AC/DC Clamp Meter
Clamp Meters

OWON CM2100 Series Smart AC/DC Clamp Meter

  • AC/DC current and voltage measurement
  • 20000-count high-resolution display
  • True RMS for accurate readings
  • NCV (non-contact voltage detection)
  • VFC mode for filtering high-frequency interference
  • AC frequency response up to 1000Hz
  • Bluetooth connectivity (CM2100B)
  • Data logging and sharing via mobile app (CM2100B)
  • Compact and portable design
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview

The CM2100 Series enhances traditional clamp meters with smart features like Bluetooth connectivity, data logging, and VFC filtering. It allows safe, non-contact current measurement while maintaining accuracy even in noisy environments such as motor drives and industrial systems. The CM2100B variant enables remote monitoring and data analysis via mobile devices.

Specifications
ModelsCM2100, CM2100B
Display20000 counts
Jaw Capacity17 mm
AC CurrentRange2A – 100A
DC CurrentRange2A – 100A
AC VoltageRange2V – 600V
DC VoltageRange200mV – 600V
ResistanceRange200Ω – 200MΩ
CapacitanceRange2nF – 20mF
FrequencyRange200Hz – 20MHz
Duty CycleRange0.1% – 99.9%
SpecialTrue RMSSupported
NCVSupported
VFC ModeSupported (noise filtering)
BluetoothAvailable in CM2100B
Data LoggingAvailable in CM2100B
Frequency ResponseAC40Hz – 1000Hz
PowerBattery2 × 1.5V AAA
PhysicalDimensions182 × 57 × 32 mm
WeightApprox. 0.2 kg
