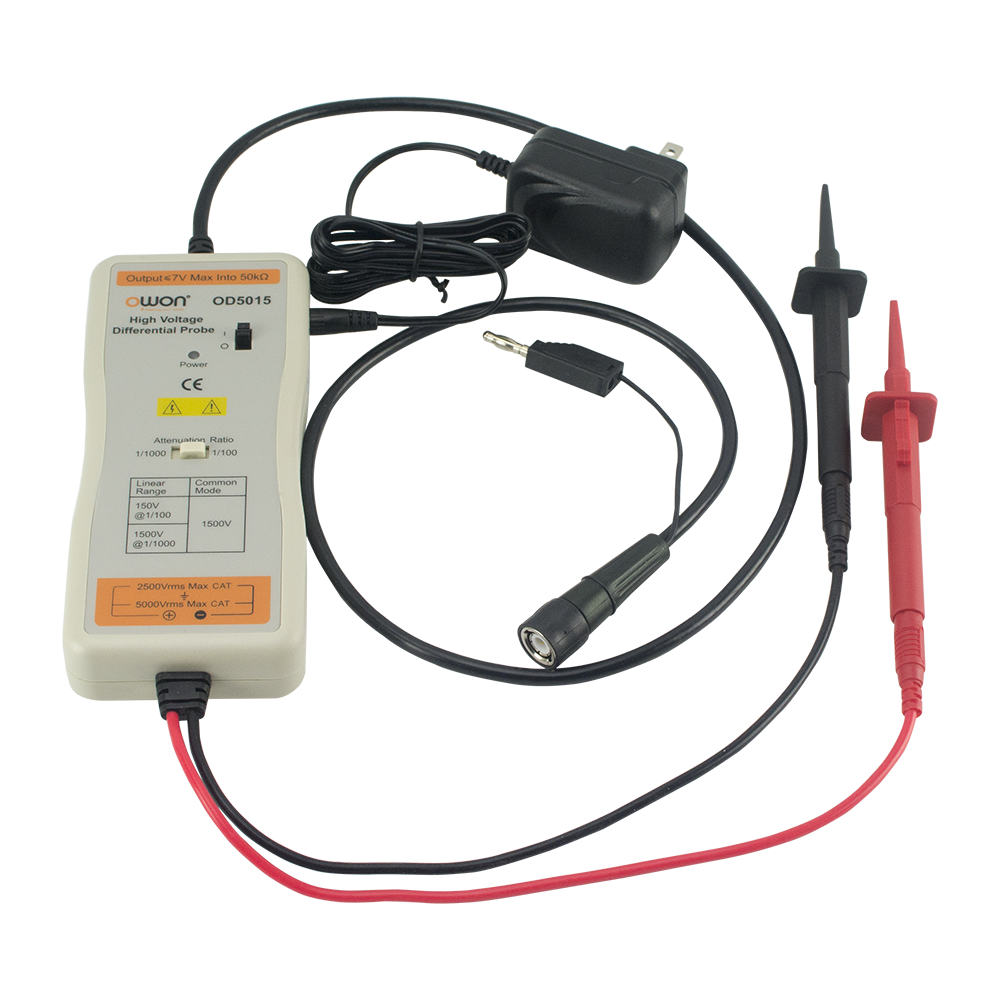

OWON Active High Voltage Differential Probe
- Differential measurement for accurate high-side signal analysis
- High CMRR (Common Mode Rejection Ratio) for noise reduction
- Supports floating measurements for non-ground-referenced signals
- High resistance isolation for enhanced safety
- Ideal for power electronics, inverters, and switching circuits
- Improves measurement accuracy in high-voltage environments
- Compatible with oscilloscopes via standard interfaces
- Designed for safe and reliable industrial testing
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
This active differential probe is essential for engineers working with high-voltage and floating signals, such as in power electronics and motor drives. With high common-mode rejection and isolation, it minimizes noise and interference, delivering accurate waveform analysis. It is particularly useful for measuring across components where traditional ground-referenced probes cannot be used safely.
Specifications
| Type | Active Differential High Voltage Probe | |
| Measurement | Measurement Type | Differential (floating measurement supported) |
| Performance | CMRR | High common-mode rejection ratio for noise suppression |
| Isolation | High resistance isolation for safety | |
| Application | Use Cases | Power electronics, motor drives, inverters, high-voltage circuits |
| Compatibility | Interface | Compatible with standard oscilloscope inputs (BNC) |
