Handheld Multimeters

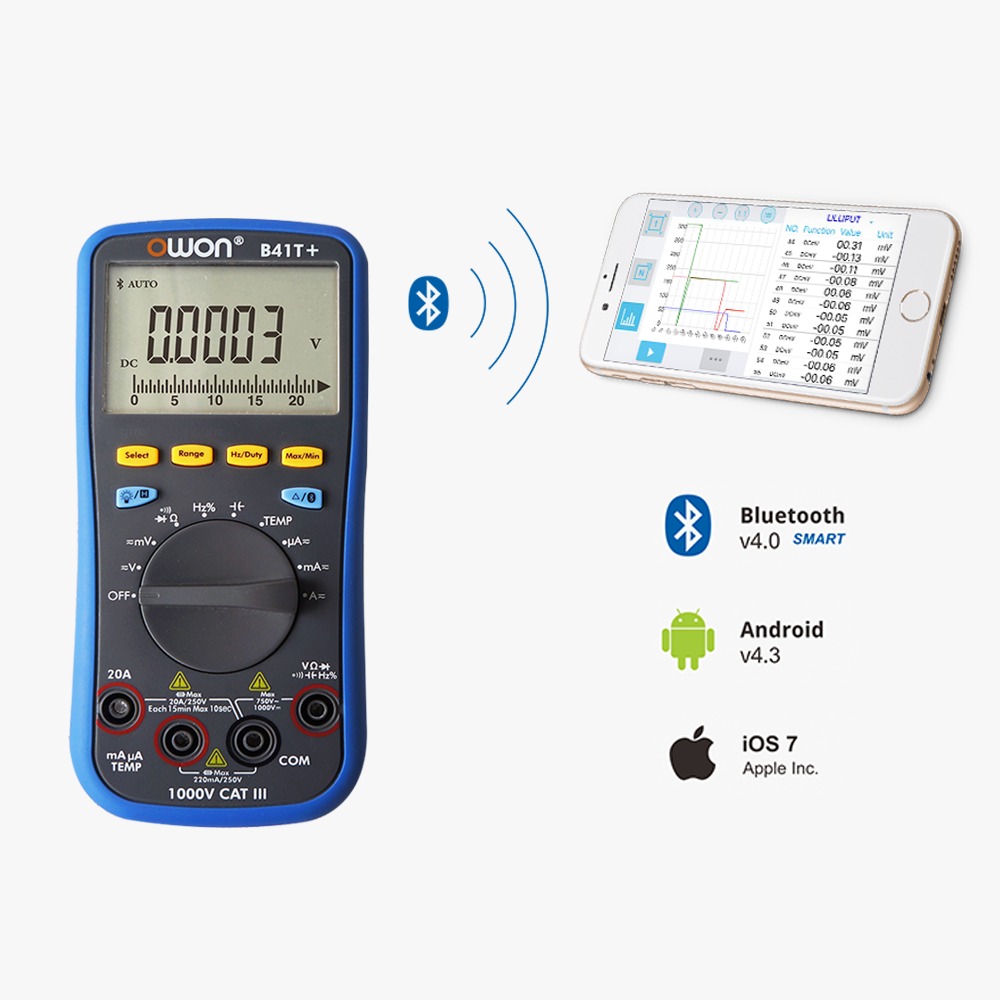

OWON 4½ Digital Multimeter B41T
- 3-in-1: Multimeter + Data Logger + Temperature meter
- 4½-digit high-resolution display (~22000 counts)
- Bluetooth 4.0 connectivity for remote monitoring
- Multi-device connection via mobile app
- Offline recording support (B41T+ model)
- Trend analysis with chart mode
- Voice warning and smart voice reading
- True RMS measurement
- Auto power-off for battery saving
- Enhanced safety with remote measurement capability
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON B41T Series bridges the gap between handheld convenience and professional-grade accuracy. With a 4½-digit display, True RMS capability, and Bluetooth connectivity, it allows engineers and technicians to monitor measurements remotely while ensuring safety. Advanced features like offline recording, multi-device monitoring, and trend analysis make it ideal for industrial diagnostics and precise electrical testing.
Specifications
| Display | 4½ digit (~22000 counts) | |
| DC Voltage | Range | 220mV – 1000V |
| AC Voltage | Range | 220mV – 750V (typical up to 1000V) |
| DC Current | Range | 220µA – 20A |
| AC Current | Range | 220µA – 20A |
| Resistance | Range | 220Ω – 220MΩ |
| Capacitance | Range | 22nF – 2.2mF+ |
| Frequency | Range | 22Hz – 220MHz |
| Duty Cycle | Range | 0.1% – 99.9% |
| Temperature | Range | -50°C to 400°C |
| Special | Bluetooth | BLE 4.0 |
| Offline Recording | Available in B41T+ | |
| Recording Duration | Up to 168 hours | |
| Record Length | 10,000 points | |
| True RMS | Supported | |
| Display | LCD Size | 69 × 52 mm |
| Physical | Dimensions | 85 × 185 × 30 mm |
| Weight | Approx. 0.32 kg |
