Handheld Multimeters

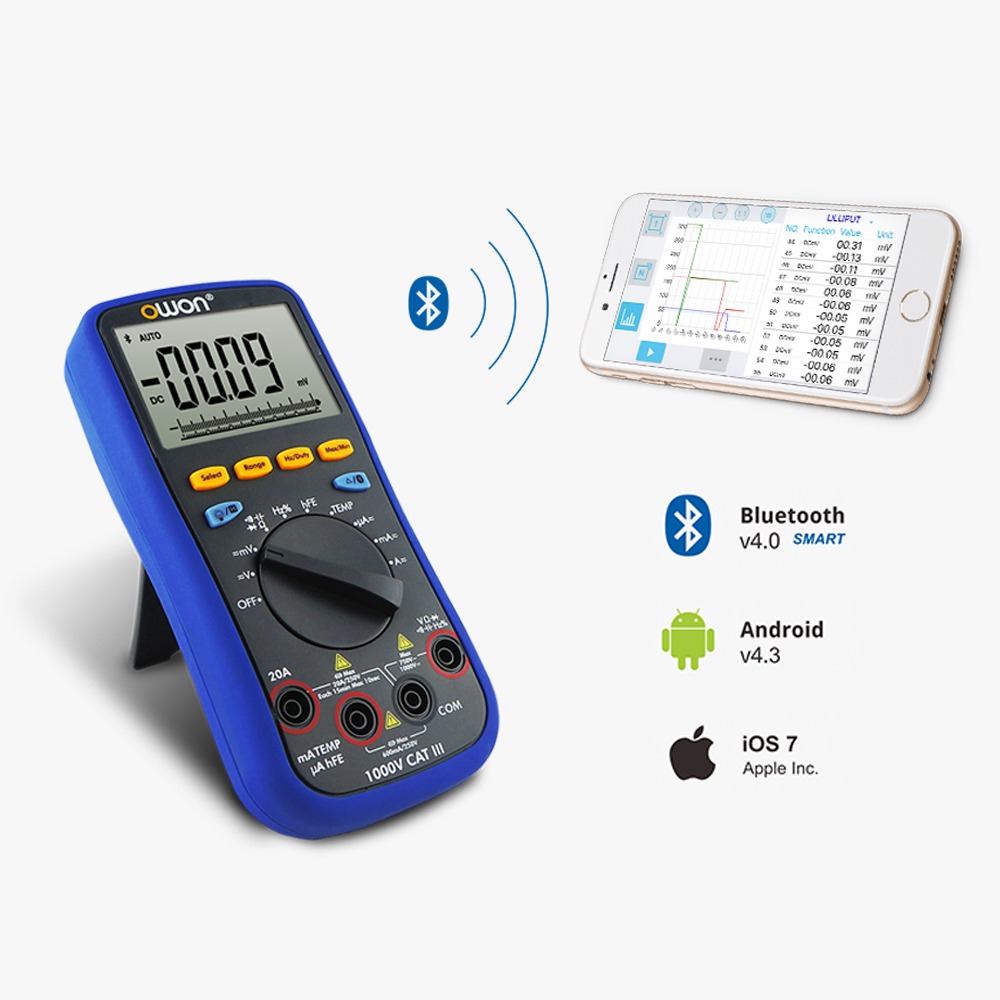

OWON 3⅚ Digital Multimeter with Bluetooth
- 3-in-1: Multimeter + Data Logger + Temperature meter
- 3⅚-digit (6000 count) display
- Bluetooth connectivity (BLE 2.0 / 4.0 depending on model)
- Multi-device monitoring via mobile app
- Offline recording (B35+, B35T+)
- Trend analysis with chart mode
- Voice warning and smart voice reading
- True RMS (D35T, B35T, B35T+)
- Auto power-off for battery saving
- Remote monitoring improves safety
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
The OWON B35/D35 Series introduces smart multimeter functionality with Bluetooth connectivity and data logging. It enables engineers and technicians to monitor multiple devices remotely, reducing risk during high-voltage measurements. Advanced models support offline recording and True RMS measurement, making this series suitable for both field diagnostics and industrial applications.
Specifications
| Models | D35, D35T, B35, B35+, B35T, B35T+ | |
| Display | 6000 counts (3⅚ digit) | |
| DC Voltage | Range | 60mV – 1000V |
| AC Voltage | Range | 60mV – 750V |
| DC Current | Range | 600µA – 20A |
| AC Current | Range | 600µA – 20A |
| Resistance | Range | 600Ω – 60MΩ |
| Capacitance | Range | 40nF – 4000µF |
| Frequency | Range | 9.999Hz – 9.999MHz |
| Duty Cycle | Range | 0.1% – 99.9% |
| Temperature | Range | -50°C to 400°C |
| Special | Bluetooth | BLE 2.0 / 4.0 (model dependent) |
| Offline Recording | Up to 10,000 points (B35+, B35T+) | |
| Recording Duration | Up to 168 hours | |
| True RMS | Available in D35T, B35T, B35T+ | |
| Display | LCD Size | 69 × 52 mm |
| Physical | Dimensions | 85 × 185 × 30 mm |
| Weight | Approx. 0.32 kg |
