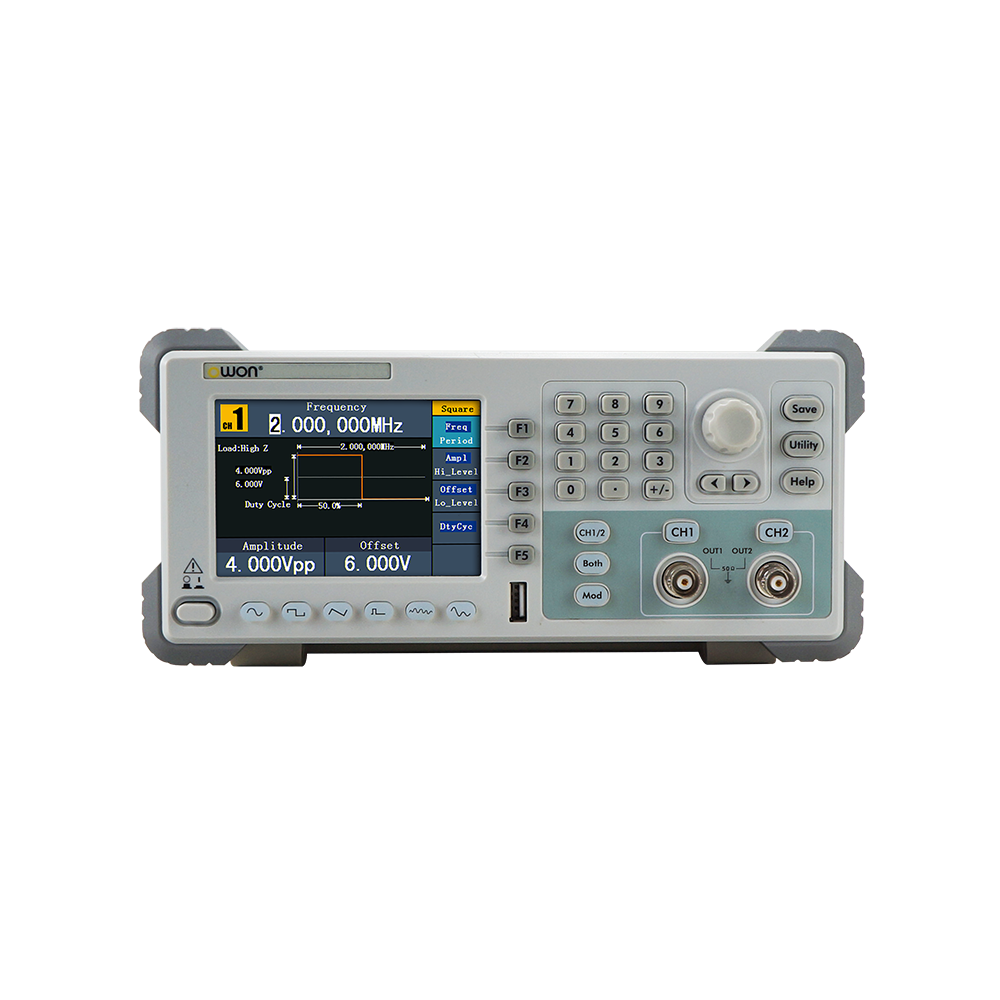

OWON 2-CH Arbitrary Waveform Generator (Without Counter)
- Dual-channel arbitrary waveform generator
- Frequency output up to 25MHz
- Sample rate up to 125MS/s
- 14-bit vertical resolution for accurate signal generation
- Up to 1M waveform memory support (platform capability)
- 5 standard waveforms and 45 built-in arbitrary waveforms
- User-defined arbitrary waveform support
- Basic modulation: AM, FM, PM, FSK, PWM, Sweep, Burst
- Dual-channel coupling (frequency, amplitude, phase)
- SCPI supported for remote control
- 4-inch TFT LCD display (480 × 320)
- Optional power amplifier module support
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
This dual-channel waveform generator provides stable and flexible signal generation with up to 25MHz frequency output. It includes essential waveform types and modulation functions, making it suitable for education, circuit testing, and general lab use. With dual-channel coupling and optional amplifier support, it enhances usability for a variety of signal simulation needs.
Specifications
| Models | AG1012, AG1022 | |
| Channels | 2 | |
| Performance | Frequency Output | 10MHz / 25MHz |
| Sample Rate | 125MS/s | |
| Vertical Resolution | 14-bit | |
| Waveforms | Standard | Sine, Square, Pulse, Ramp, Noise |
| Arbitrary | 45 built-in + user-defined waveforms | |
| Frequency | Range | 1μHz – 25MHz (model dependent) |
| Amplitude | Output Range | 1mVpp – 10Vpp (50Ω), 1mVpp – 20Vpp (High-Z) |
| Offset | DC Offset Range | ±5V (50Ω), ±10V (High-Z) |
| Modulation | Types | AM, FM, PM, FSK, PWM, Sweep, Burst |
| Arbitrary | Waveform Length | 2 – 8K points |
| Memory | 64MB non-volatile memory | |
| Interfaces | Connectivity | USB Host, USB Device, RS232 (optional) |
| Display | Screen | 4-inch LCD (480 × 320) |
| Physical | Dimensions | 235 × 110 × 295 mm |
| Weight | Approx. 3.0 kg |
