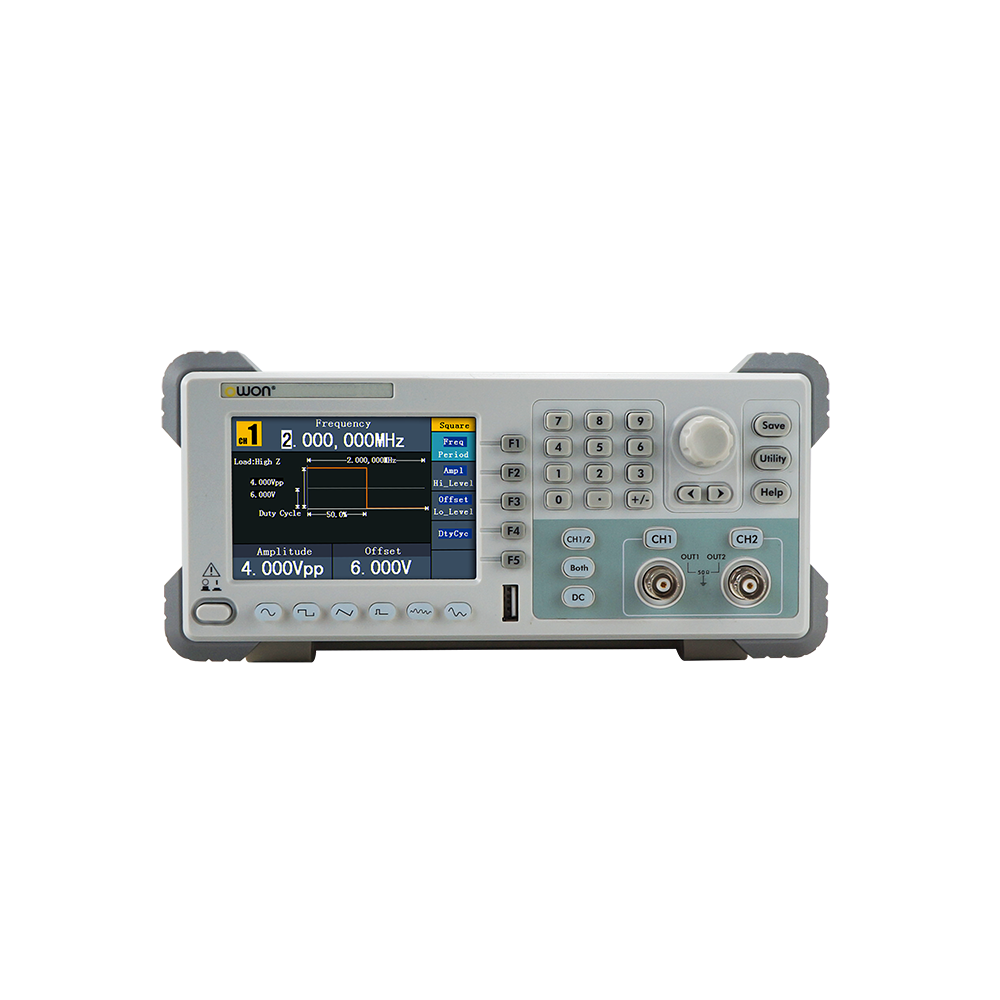

OWON 2-CH Arbitrary Waveform Generator (With Counter)
- Dual-channel arbitrary waveform generator
- Frequency output up to 60MHz
- Sample rate up to 250MS/s
- 14-bit vertical resolution for high accuracy
- Up to 1M waveform memory (model dependent)
- 5 standard waveforms and 45 built-in arbitrary waveforms
- User-defined arbitrary waveform support
- Advanced modulation: AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, Burst
- Integrated high-accuracy frequency counter (100mHz – 200MHz)
- Dual-channel coupling (frequency, amplitude, phase)
- SCPI supported for automation
- 4-inch TFT LCD display (480 × 320)
- Optional power amplifier module support
Need a custom configuration?Our engineers are ready to help spec the right solution.
Overview
This dual-channel waveform generator integrates a high-accuracy frequency counter, enabling both signal generation and measurement in a single device. With up to 60MHz output and 250MS/s sample rate, it supports a wide range of applications including education, electronics testing, and general lab work. Its modulation features and dual-channel synchronization enhance versatility for real-world signal simulation.
Specifications
| Models | AG1012F, AG1022F, AG2052F, AG2062F | |
| Channels | 2 | |
| Performance | Frequency Output | 10MHz / 25MHz / 50MHz / 60MHz |
| Sample Rate | 125MS/s / 250MS/s (model dependent) | |
| Vertical Resolution | 14-bit | |
| Waveforms | Standard | Sine, Square, Pulse, Ramp, Noise |
| Arbitrary | 45 built-in + user-defined waveforms | |
| Frequency | Range | 1μHz – 60MHz (model dependent) |
| Amplitude | Output Range | 1mVpp – 10Vpp (50Ω), 1mVpp – 20Vpp (High-Z) |
| Offset | DC Offset Range | ±5V (50Ω), ±10V (High-Z) |
| Modulation | Types | AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, Burst |
| Measurement | Frequency Counter | Frequency, Period, Duty Cycle, Pulse Width (100mHz – 200MHz) |
| Arbitrary | Waveform Length | 2 – 8K points / up to 1M points (model dependent) |
| Memory | 64MB non-volatile memory | |
| Interfaces | Connectivity | USB Host, USB Device, RS232 (optional) |
| Display | Screen | 4-inch LCD (480 × 320) |
| Physical | Dimensions | 235 × 110 × 295 mm |
| Weight | Approx. 3.0 kg |
